PV Tech 1200

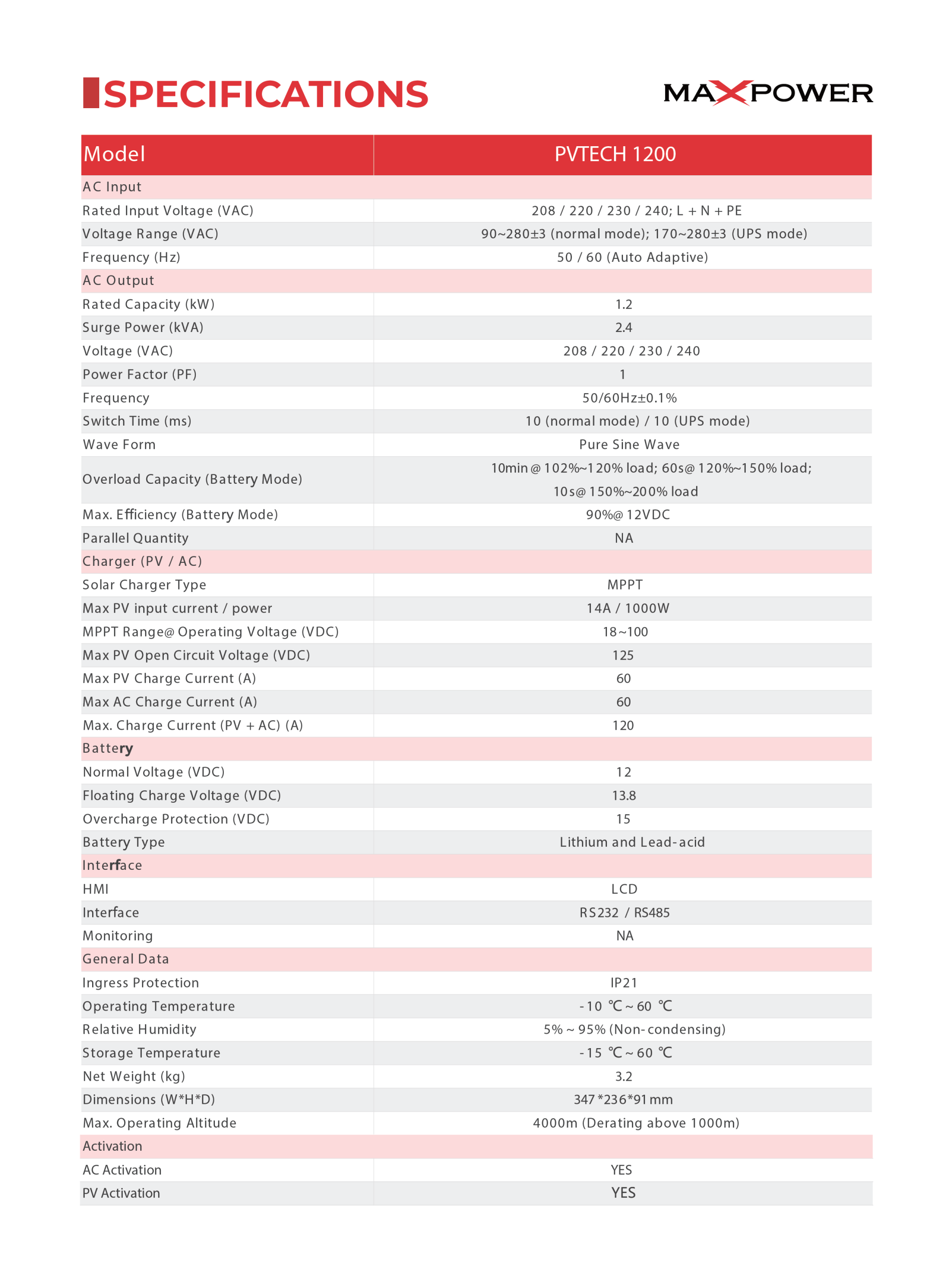

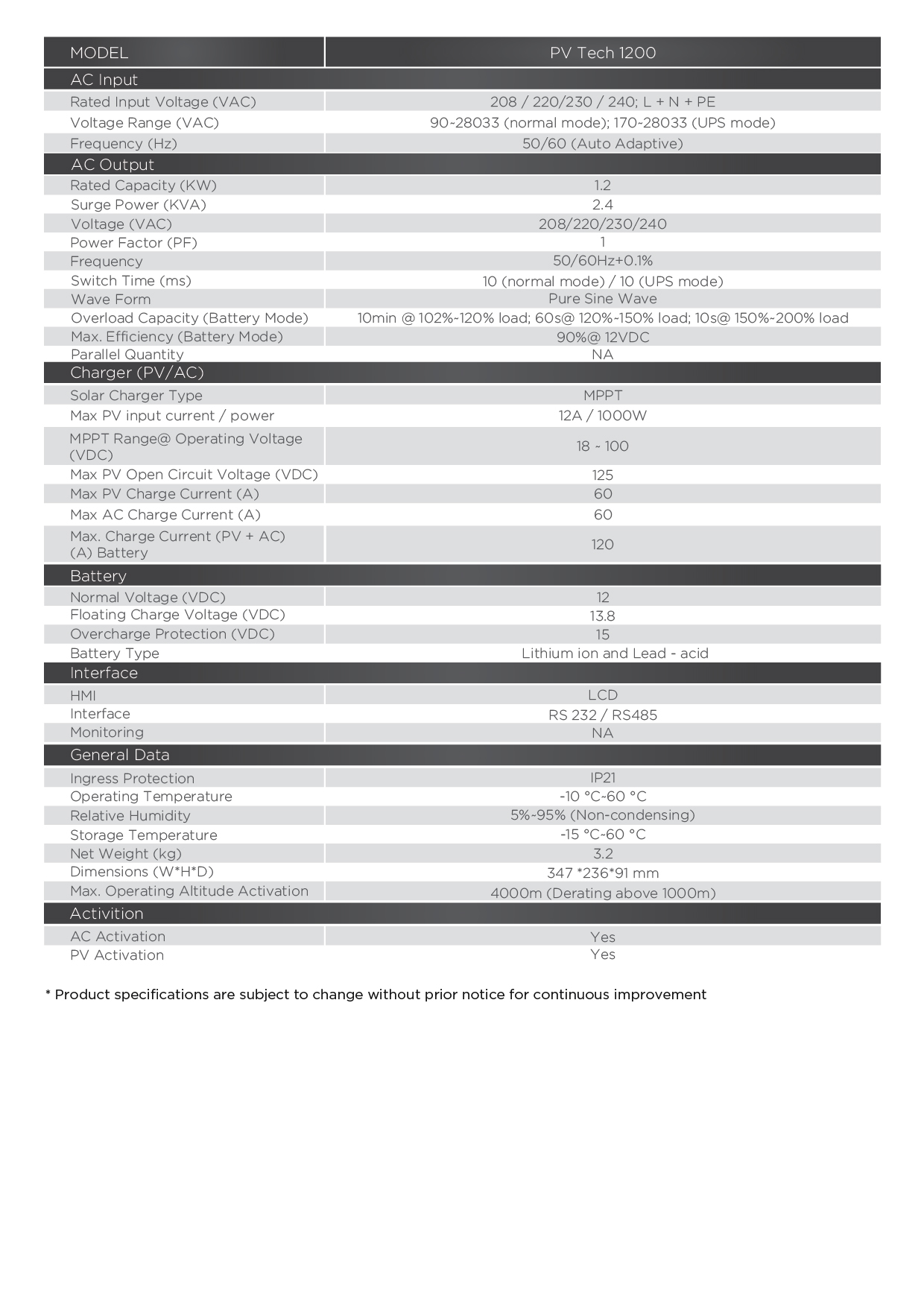

PV Tech 1200 is a compact, efficient solar inverter designed for small-scale energy needs, delivering a rated capacity of 1.2 kW with a 2.4 kVA surge capability and pure sine wave output for stable performance. It features a fast 10 ms transfer time and maintains reliable operation across a wide input voltage range with auto-adaptive 50/60 Hz frequency support. Equipped with an MPPT solar charger, it supports up to 1000W PV input with 12A current and an MPPT tracking range of 18–100 VDC, ensuring optimal solar energy harvesting.

12V battery system is compatible with both lithium-ion and lead-acid batteries, offering 13.8 V float charging and 15V overcharge protection. The inverter includes an LCD interface with RS232/RS485 communication options and offers both AC and PV activation modes. Designed for durability, it carries IP21 protection, operates from –10°C to 50°C, and maintains performance up to 4000m altitude, all housed in a lightweight 3.2 kg structure with compact dimensions of 347×236×91 mm.
