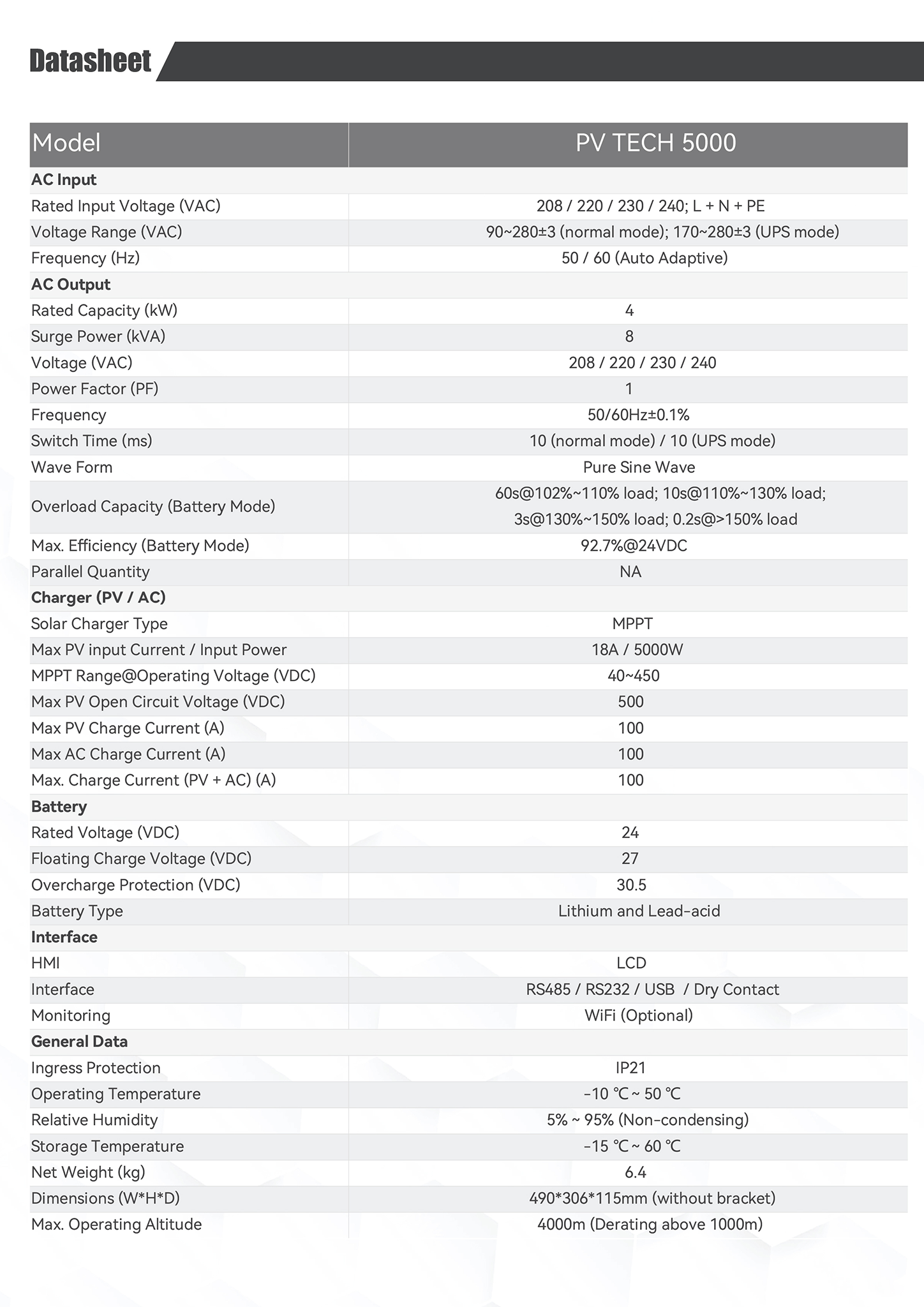

AC Input
- Rated Input Voltage (VAC): 208 / 220 / 230 / 240; L + N + PE
- Frequency (Hz): 50 / 60 (Auto Adaptive)
AC Output
- Rated Capacity (kW): 4
- Surge Power (kVA): 8
- Voltage (VAC): 208 / 220 / 230 / 240
- Power Factor (PF): 1
- Frequency: 50/60Hz±0.1%
- Switch Time (ms): 10 (normal mode) / 10 (UPS mode)
- Wave Form: Pure Sine Wave
- Overload Capacity (Battery Mode):
- 60s@102%~110% load
- 10s@110%~130% load
- 3s@130%~150% load
- 0.2s@>150% load
- Max. Efficiency (Battery Mode): 92.7%@24VDC
- Parallel Quantity: NA
Charger (PV / AC)
- Solar Charger Type: MPPT
- Max PV Input Current / Input Power: 18A / 5000W
- MPPT Range @ Operating Voltage (VDC): 40~450
- Max PV Open Circuit Voltage (VDC): 500
- Max PV Charge Current (A): 100
- Max AC Charge Current (A): 100
- Max. Charge Current (PV + AC) (A): 100
Battery
- Rated Voltage (VDC): 24
- Floating Charge Voltage (VDC): 27
- Overcharge Protection (VDC): 30.5
- Battery Type: Lithium and Lead-acid
Interface
- HMI: LCD
- Interface: RS485 / RS232 / USB / Dry Contact
- Monitoring: WiFi (Optional)
General Data
- Ingress Protection: IP21
- Operating Temperature: -10°C ~ 50°C
- Relative Humidity: 5% ~ 95% (Non-condensing)
- Storage Temperature: -15°C ~ 60°C
- Net Weight (kg): 6.4
- Dimensions (WHD): 490306115mm (without bracket)
- Max. Operating Altitude: 4000m (Derating above 1000m)
Technical Specifications
