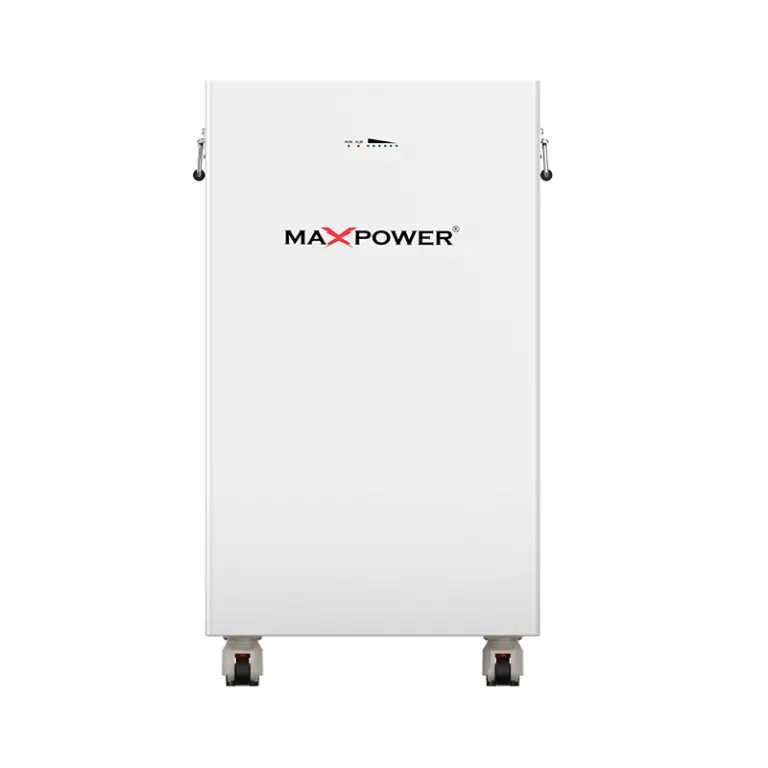

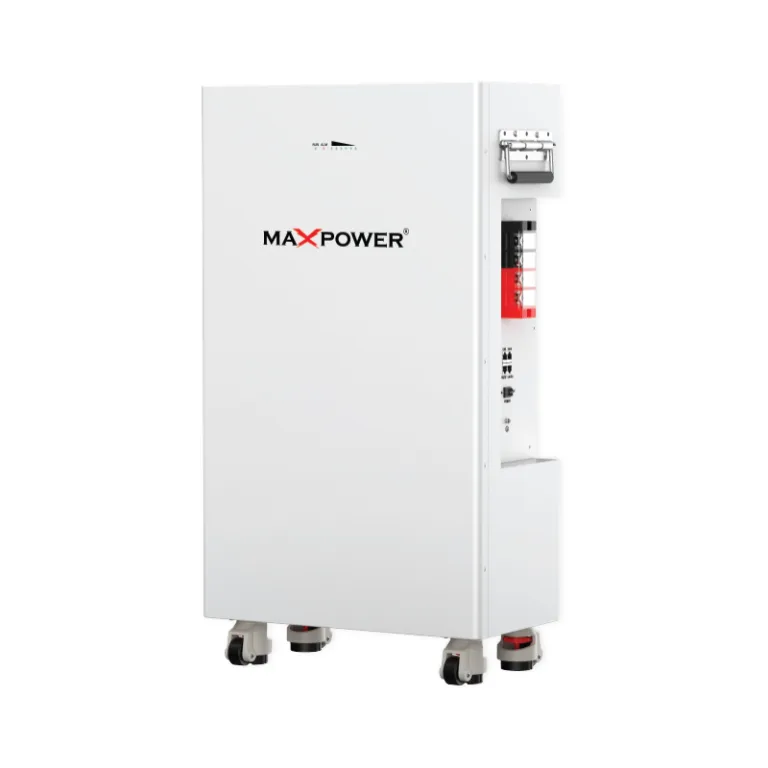

The Maxell Power MP 16000-ALPHA is a 51.2V 314Ah LiFePO4 (Lithium Iron Phosphate) lithium battery for solar energy systems in the UAE and wider MEA region, suited to large homes and commercial installations. It stores 16kWh of energy in a floor-stand design, with cable included. You can connect up to 63 batteries in parallel for more capacity. See the full Alpha battery series and the lithium battery range for other options, such as the MP 10000-ALPHA.
It has a nominal capacity of 314Ah, a charge current of 150A (7.68kW) and a discharge current of 235A (12kW). It charges at 0°C to 55°C and discharges at -20°C to 55°C.
It has an SOC status indicator and an LED indicator, and CAN and RS485 communication to connect to a compatible hybrid inverter. It has an IP20 rating, so it is meant for indoor installation. It measures 780 x 470 x 235 mm and weighs 119kg. It is CE and UN38.3 certified. The datasheet lists these compatible inverter brands: Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, as long as the inverter supports the battery’s 51.2V system. Browse Maxell Power’s hybrid solar inverters to find a matching inverter, or pair it with solar panels. Contact Maxell Power to size the right battery system.
Frequently Asked Questions
What is the MP 16000-ALPHA lithium battery used for?
The MP 16000-ALPHA is used for large solar energy storage in homes and commercial setups in the UAE and MEA region. With a compatible hybrid inverter, it stores solar energy for backup power.
What is the capacity of the MP 16000-ALPHA battery?
It has a 16kWh energy capacity with a nominal voltage of 51.2V and a nominal capacity of 314Ah. You can connect up to 63 batteries in parallel for larger projects.
What are the maximum charge and discharge power of the MP 16000-ALPHA?
Charging is up to 150A (7.68kW) and discharging is up to 235A (12kW).
Which inverters work with the MP 16000-ALPHA?
Brands listed on the datasheet are Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, LuxPower and Voltronic Power, using CAN or RS485 communication. Your inverter must support the battery’s 51.2V system voltage. Please confirm compatibility with your exact inverter before purchase.
Can the MP 16000-ALPHA be installed outdoors?
No. It has an IP20 rating, so it should be installed indoors in a dry, ventilated place, away from dust and water. It is installed on the floor with a stand and should be kept within its operating temperature range.
How much does the MP 16000-ALPHA cost in the UAE, and how can I monitor it?
The price depends on the current market rate and your system size, so contact Maxell Power for a quotation. For monitoring, it has an SOC status indicator and an LED indicator, and it shares data with the inverter through CAN or RS485 communication.
