Bifacial 525W Half Cut Photovoltaic Module

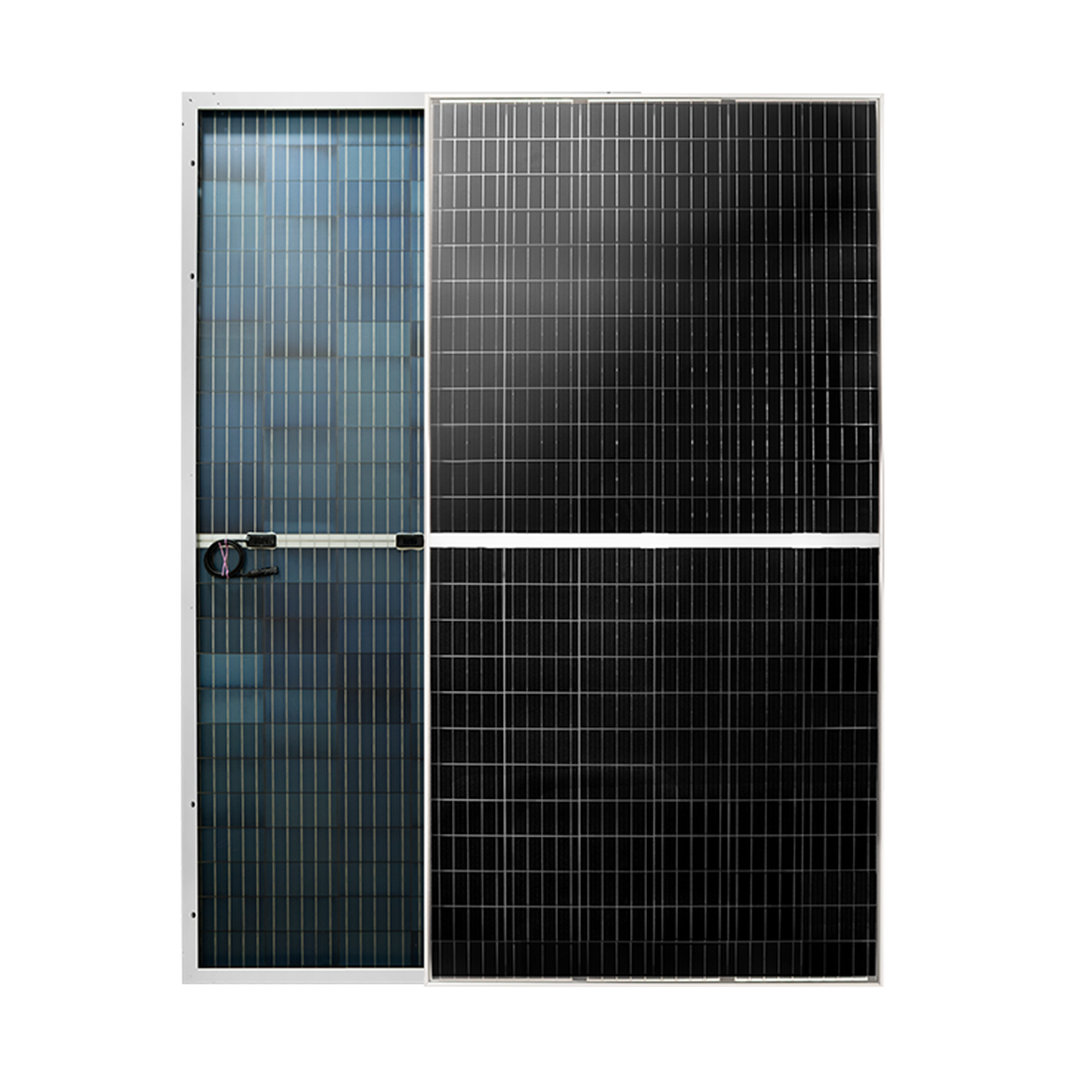

The Maxell Power Bifacial 525W Half Cut Photovoltaic Module is a 525W bifacial mono-crystalline solar panel for solar power systems in the UAE and wider MEA region, suited to homes, shops and commercial installations. It has 144 mono-crystalline silicon cells in an anodized aluminum frame with 3.2mm pattern front glass. The model name lists it as a half-cut module, and the cell type is listed as bifacial mono-crystalline silicon. See the full solar panel range for other options, such as the Bifacial 280W Half Cut module.

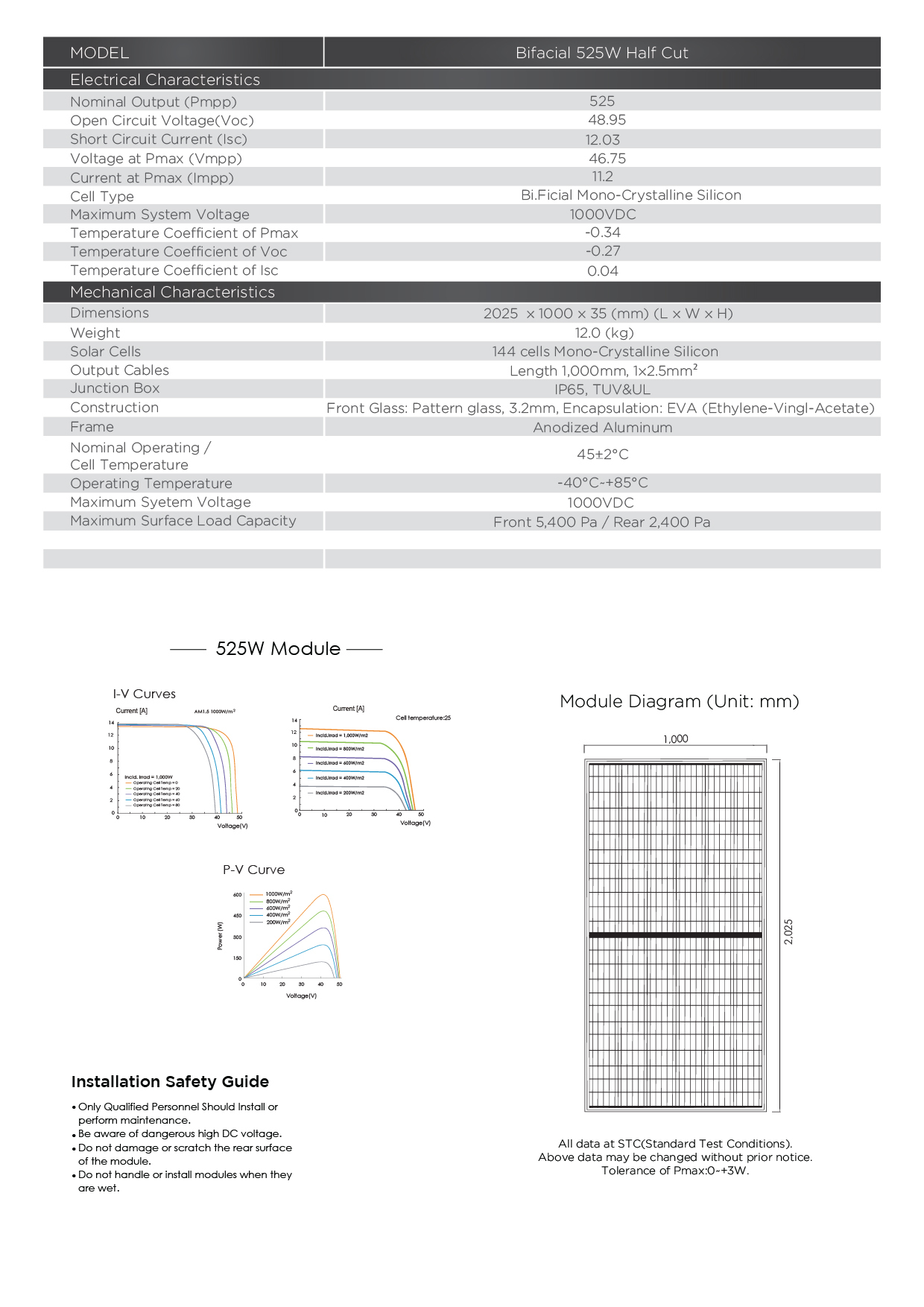

It has a nominal output of 525W, an open circuit voltage (Voc) of 48.95V, a short circuit current (Isc) of 12.03A, a voltage at Pmax (Vmpp) of 46.75V and a current at Pmax (Impp) of 11.2A. The maximum system voltage is 1000VDC. The temperature coefficient is -0.34%/°C for Pmax, -0.27%/°C for Voc and 0.04%/°C for Isc. All data is at STC (Standard Test Conditions), with a Pmax tolerance of 0 to +3W.

The panel measures 2025 x 1000 x 35 mm and weighs 12kg. It has a 1000mm output cable (1 x 2.5mm²) and an IP65 junction box (TUV & UL). The nominal operating cell temperature is 45±2°C, it works from -40°C to +85°C, and it can handle a maximum surface load of 5,400 Pa on the front and 2,400 Pa on the rear. Browse Maxell Power’s hybrid solar inverters to find an inverter that matches your panel string, and contact Maxell Power to size the right solar system.

Frequently Asked Questions

What is the Bifacial 525W Half Cut solar panel used for?
It is used to generate electricity from sunlight in solar power systems for homes, shops and commercial setups in the UAE and MEA region. It is connected to a compatible solar inverter.

What are the power and electrical ratings of the Bifacial 525W Half Cut panel?
It has a nominal output of 525W, Voc of 48.95V, Isc of 12.03A, Vmpp of 46.75V and Impp of 11.2A at STC. The maximum system voltage is 1000VDC, and the Pmax tolerance is 0 to +3W.

What does bifacial mean for this panel?
A bifacial panel can capture light on both the front and the rear side. The cell type is listed as bifacial mono-crystalline silicon. The sheet does not give a bifacial gain figure, so the 525W rating should be treated as the STC rating, and any extra rear-side output depends on your installation.

What is the size and weight of the Bifacial 525W Half Cut panel?
It measures 2025 x 1000 x 35 mm and weighs 12kg. It has 144 mono-crystalline silicon cells, an anodized aluminum frame and 3.2mm pattern front glass.

What temperature and load limits does this panel have?
The operating temperature is -40°C to +85°C, and the nominal operating cell temperature (NOCT) is 45±2°C. The maximum surface load is 5,400 Pa on the front and 2,400 Pa on the rear. The temperature coefficient of Pmax is -0.34%/°C.

How much does the Bifacial 525W Half Cut panel cost in the UAE, and which inverter does it need?
The price depends on the quantity and the current market rate, so contact Maxell Power for a quotation. It connects to a compatible solar inverter, and your string voltage and current must stay within the inverter’s input limits.
