Mono 210W / 220W Bifacial Photovoltaic Module

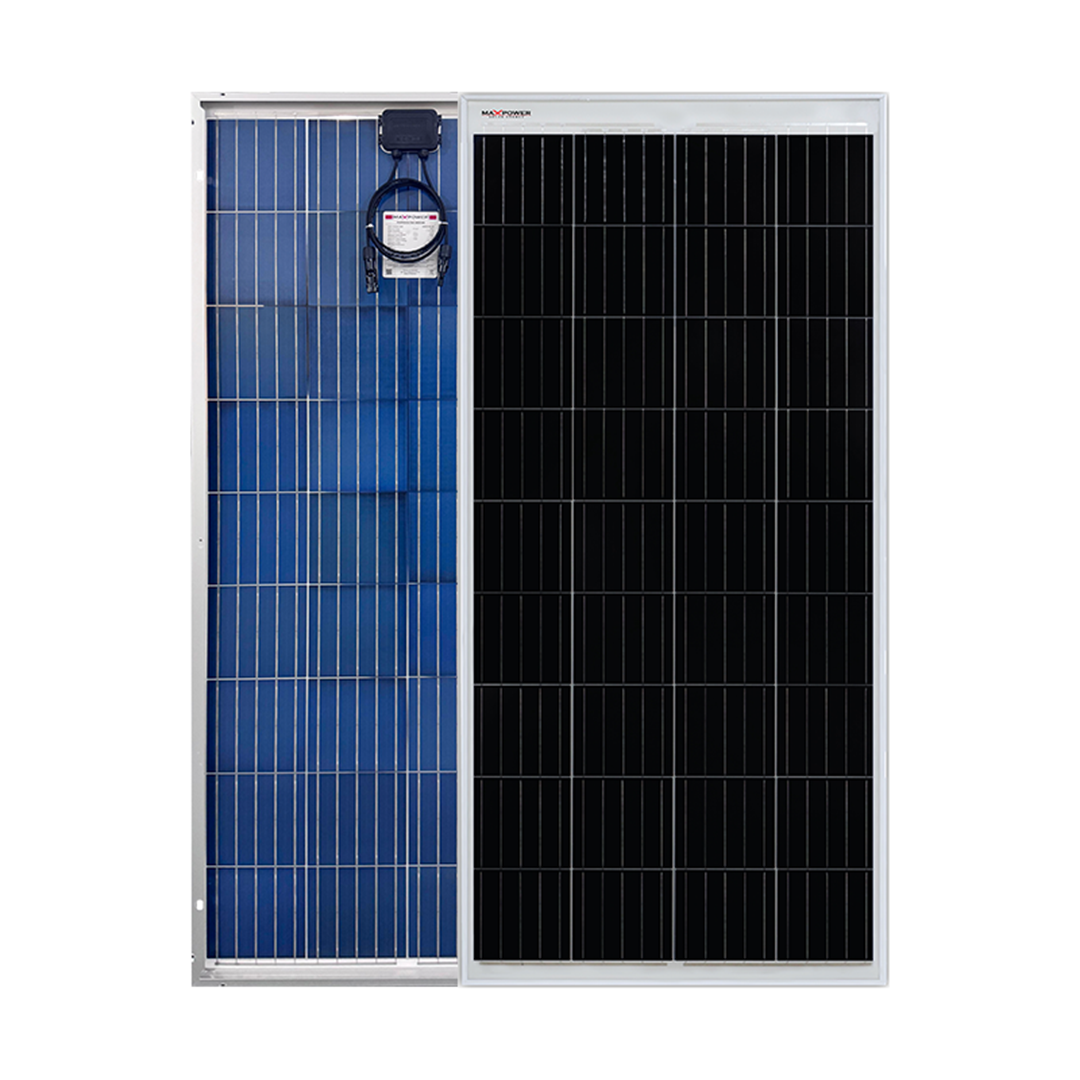

The Maxell Power Mono 220W Bi is a mono-crystalline solar panel for solar power systems in the UAE and wider MEA region, suited to homes, shops and small commercial installations. It has 36 mono-crystalline silicon cells in an anodized aluminum frame with 3.2mm pattern front glass. The model name has “Bi” in it, but the cell type is listed only as mono-crystalline. See the full solar panel range for other options, such as the Bifacial 280W Half Cut module.

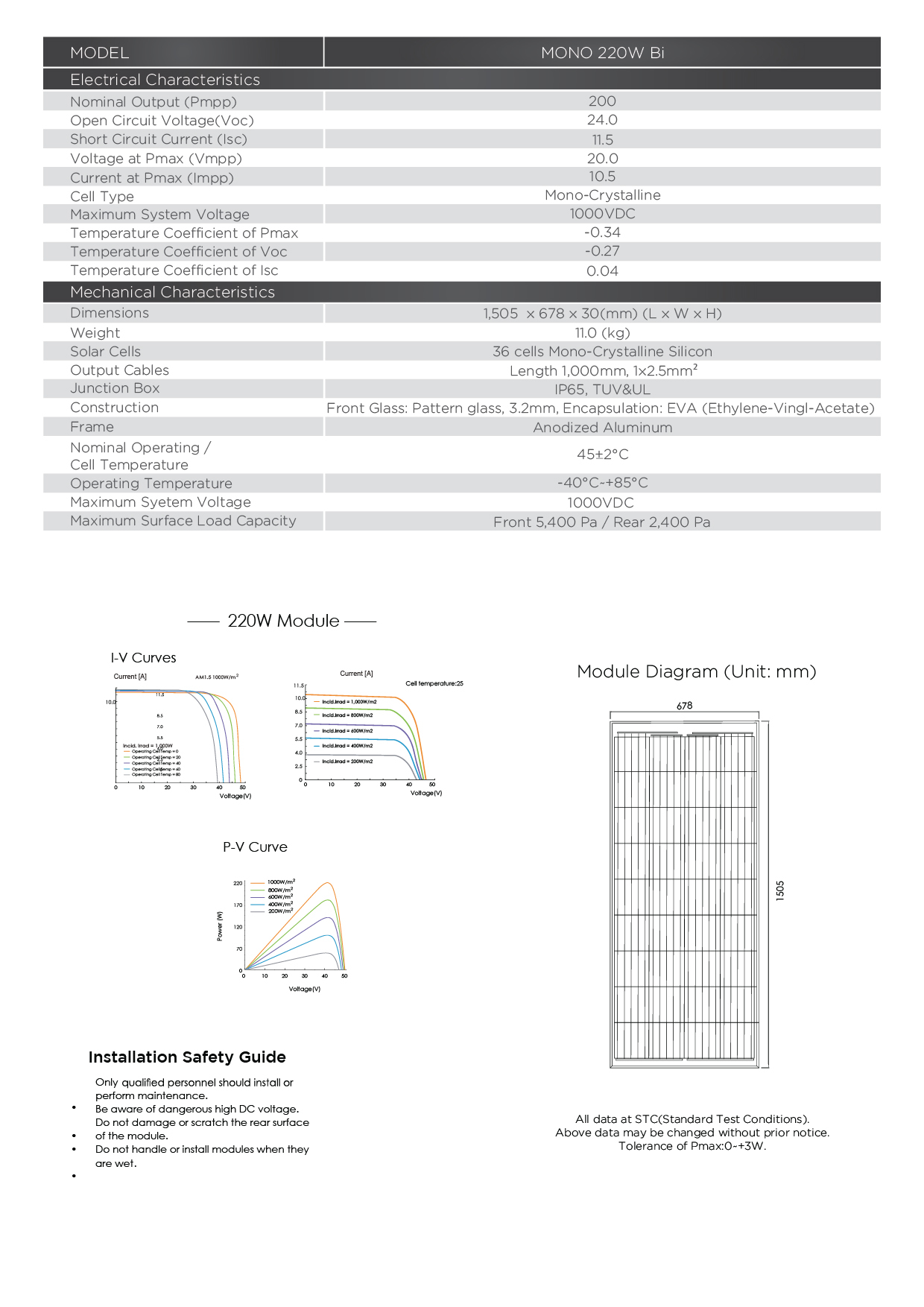

The sheet lists a nominal output (Pmpp) of 200W, an open circuit voltage (Voc) of 24.0V, a short circuit current (Isc) of 11.5A, a voltage at Pmax (Vmpp) of 20.0V and a current at Pmax (Impp) of 10.5A. The maximum system voltage is 1000VDC. The temperature coefficient is -0.34%/°C for Pmax, -0.27%/°C for Voc and 0.04%/°C for Isc. All data is at STC (Standard Test Conditions), with a Pmax tolerance of 0 to +3W.

The panel measures 1505 x 678 x 30 mm and weighs 11kg. It has a 1000mm output cable (1 x 2.5mm²) and an IP65 junction box (TUV & UL). The nominal operating cell temperature is 45±2°C, it works from -40°C to +85°C, and it can handle a maximum surface load of 5,400 Pa on the front and 2,400 Pa on the rear. Browse Maxell Power’s hybrid solar inverters to find an inverter that matches your panel string, and contact Maxell Power to size the right solar system.

Frequently Asked Questions

What is the Mono 220W Bi solar panel used for?
It is used to generate electricity from sunlight in solar power systems for homes, shops and small commercial setups in the UAE and MEA region. It is connected to a compatible solar inverter or charge controller.

What are the power and electrical ratings of the Mono 220W Bi?
The sheet lists a nominal output of 200W, Voc of 24.0V, Isc of 11.5A, Vmpp of 20.0V and Impp of 10.5A at STC. The maximum system voltage is 1000VDC, and the Pmax tolerance is 0 to +3W. Please confirm the exact power rating with Maxell Power before purchase.

What does “Bi” mean in the Mono 220W Bi model name?
“Bi” in the model name points to a bifacial design, but the sheet lists the cell type only as mono-crystalline and gives no bifacial gain figure. Please confirm with Maxell Power whether the panel is bifacial before purchase.

What is the size and weight of the Mono 220W Bi?
It measures 1505 x 678 x 30 mm and weighs 11kg. It has 36 mono-crystalline silicon cells, an anodized aluminum frame and 3.2mm pattern front glass.

What temperature and load limits does this panel have?
The operating temperature is -40°C to +85°C, and the nominal operating cell temperature (NOCT) is 45±2°C. The maximum surface load is 5,400 Pa on the front and 2,400 Pa on the rear. The temperature coefficient of Pmax is -0.34%/°C.

How much does the Mono 220W Bi cost in the UAE, and which inverter does it need?
The price depends on the quantity and the current market rate, so contact Maxell Power for a quotation. It connects to a compatible solar inverter, and your string voltage and current must stay within the inverter’s input limits.
