The MaxPower MP16000 Ultra is a cutting-edge lithium-ion battery for residential and commercial applications. Renowned for its reliability and efficiency, it ranks among the best lithium batteries in UAE, providing impressive performance for diverse energy storage needs.

With a nominal energy of 16 KWh and a capacity of 314 Ah, it operates within a voltage range of 40-58.4 V. This battery supports a recommended charge current of 150 A and a discharge current of 200 A, with a maximum lifespan of up to 10 years and an 8000 life cycle guarantee.

The MaxPower MP5000 Pro features an IP20 protection degree and versatile installation options—either wall-mounted or floor-mounted. Weighing 120 kg and measuring 780 mm x 470 mm x 235 mm, it’s ideal for home energy systems, backup solutions, and renewable energy storage.

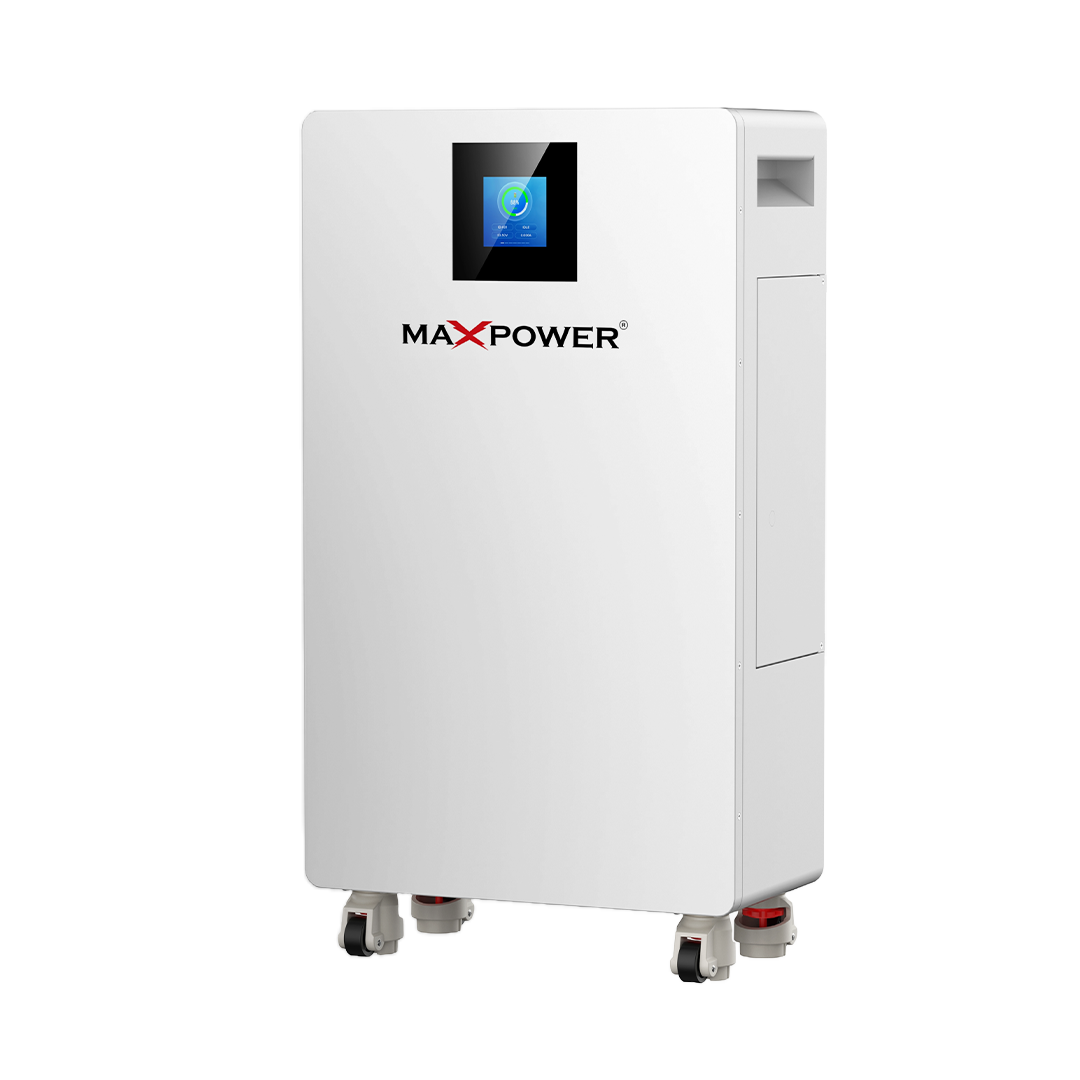

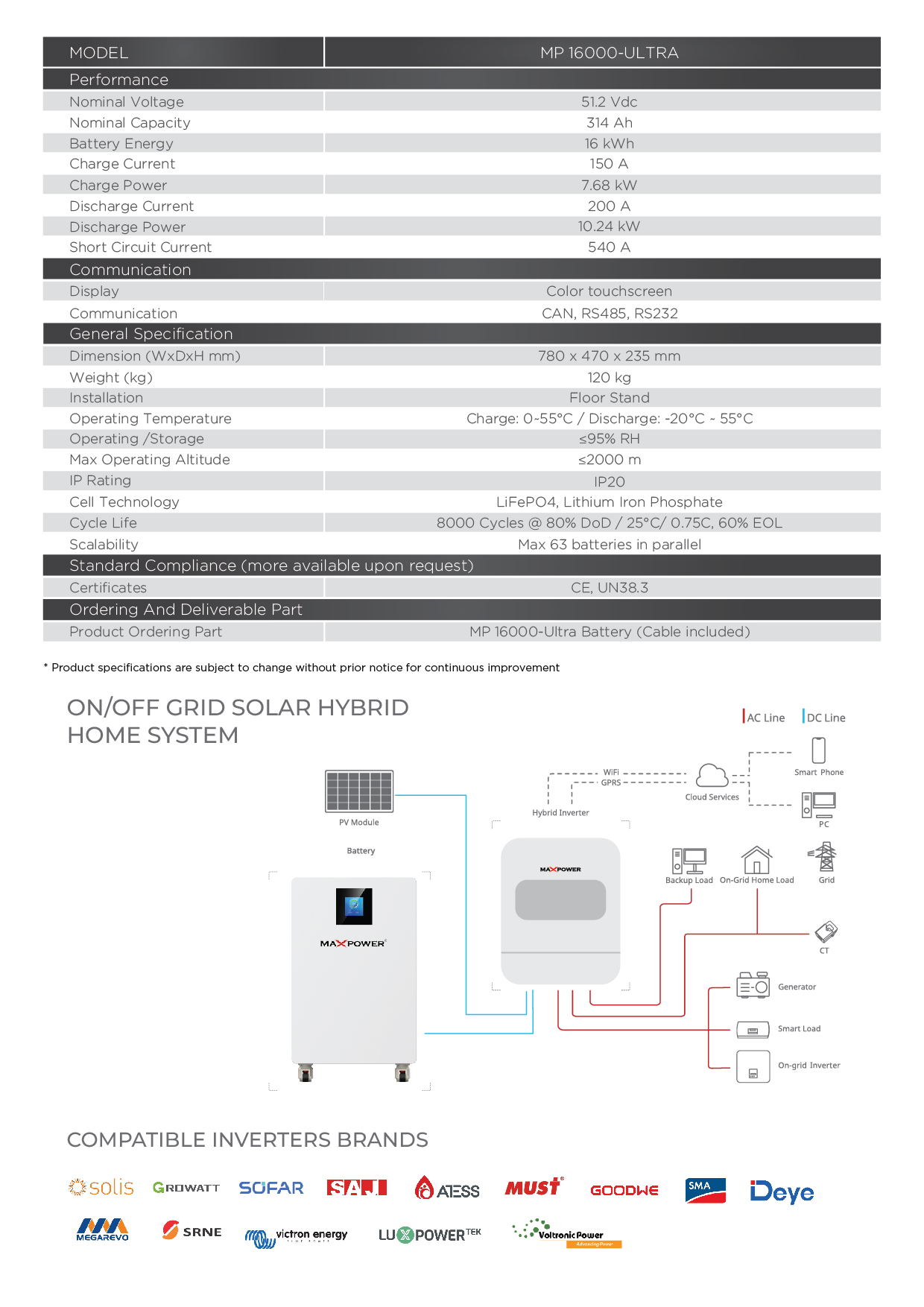

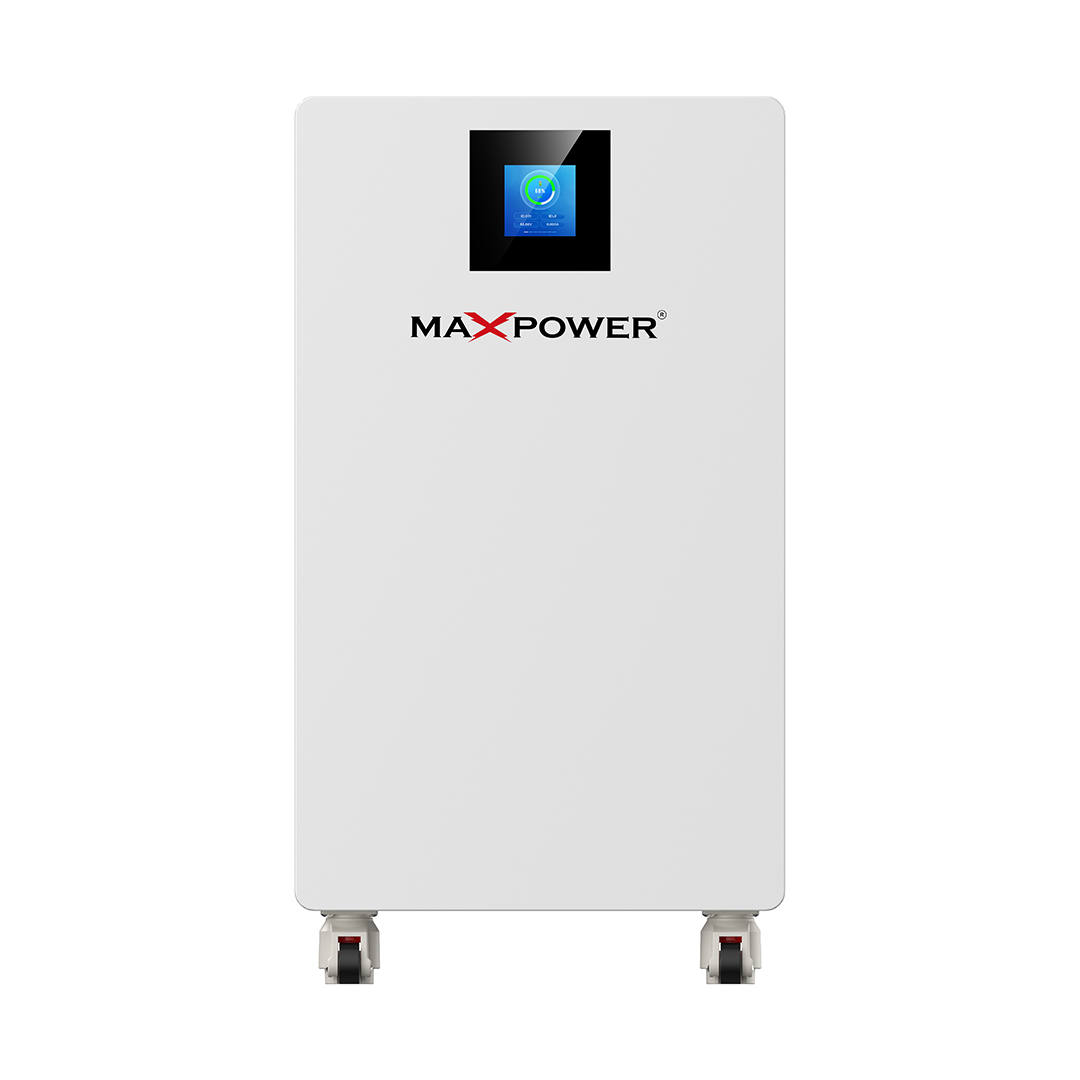

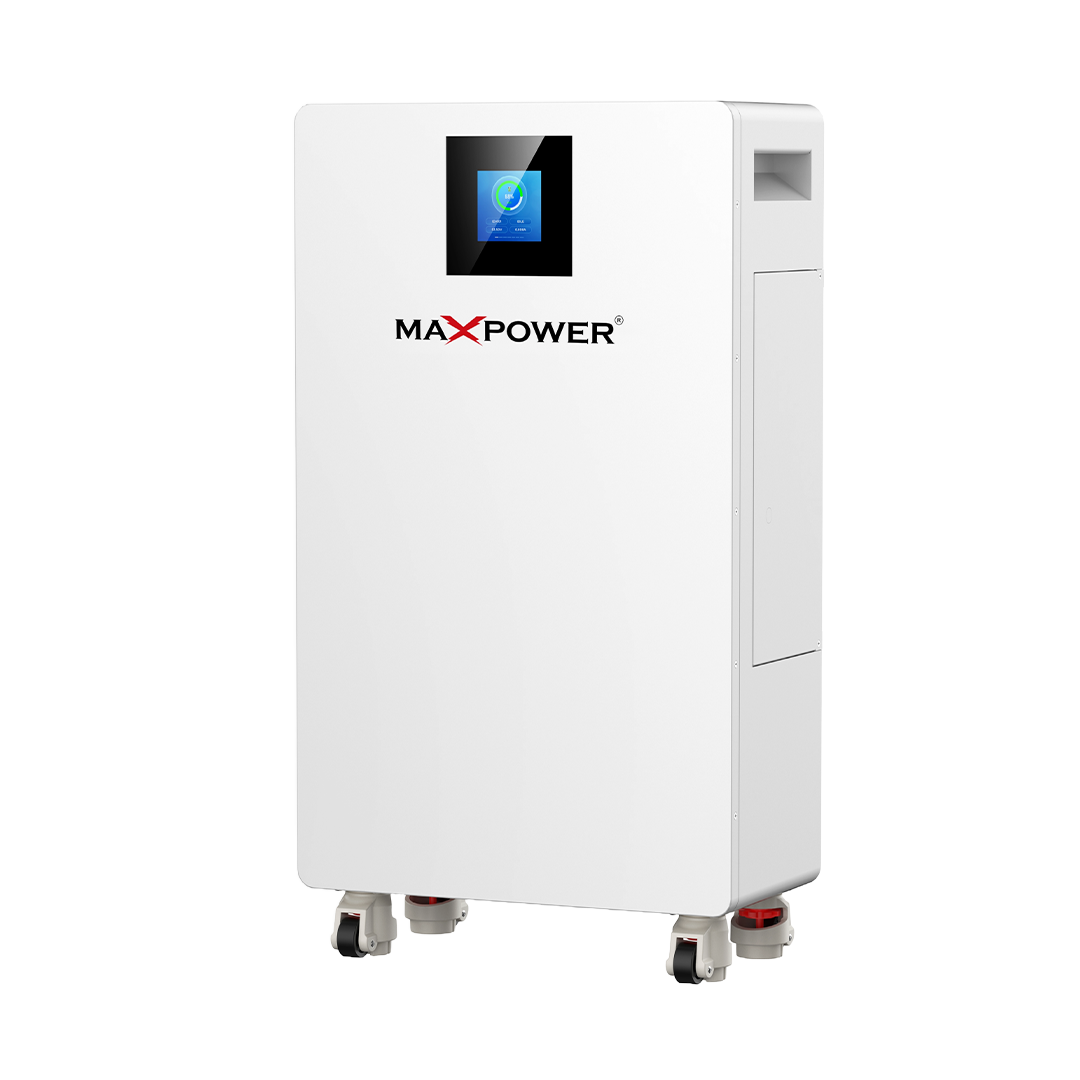

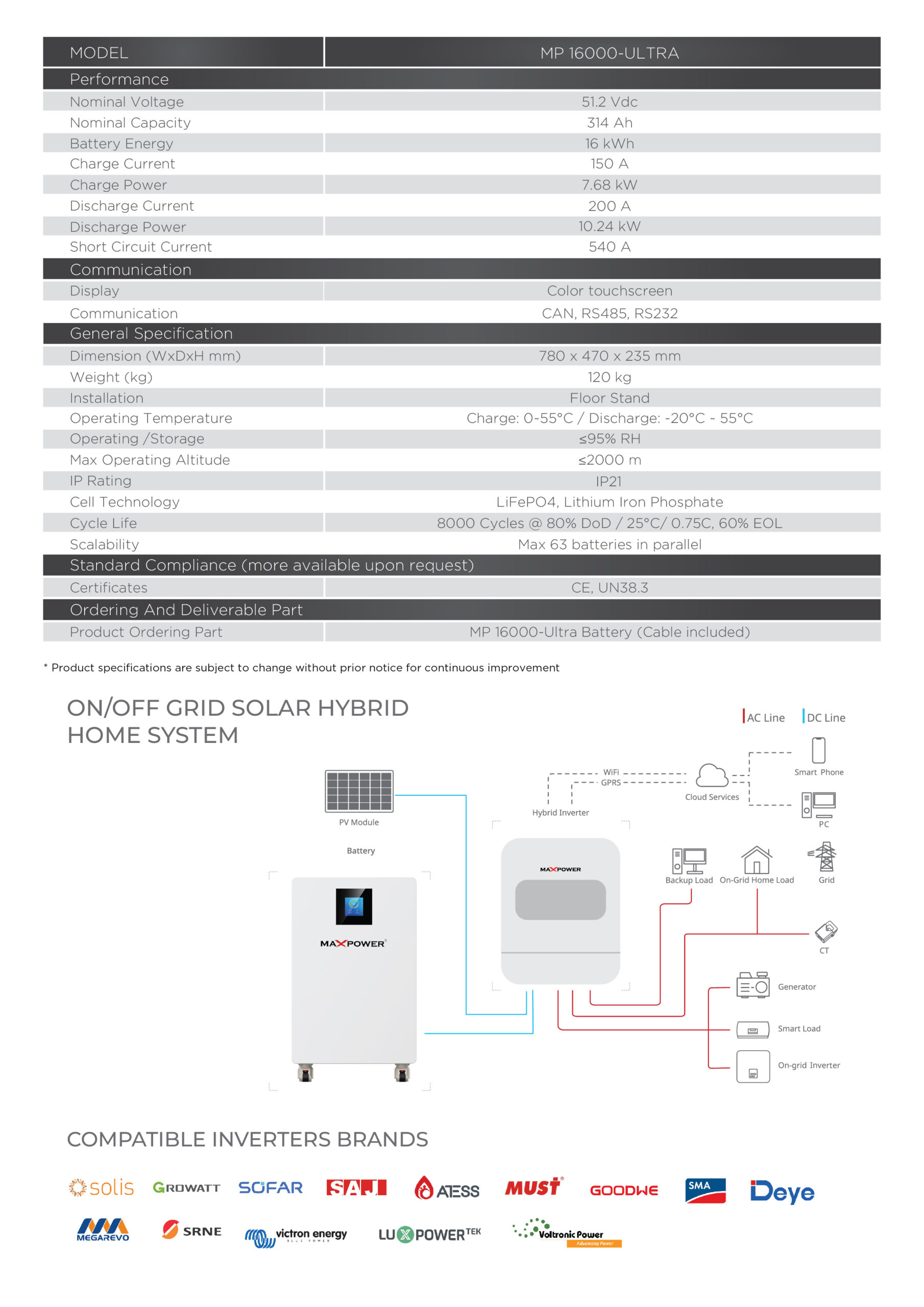

The MP 16000-ULTRA Lithium Battery is a high-capacity 51.2V, 314Ah (16 kWh) energy storage battery available at Maxell Power, engineered to deliver dependable energy backup for medium-to-large solar house setups, commercial properties, and off-grid power systems. Built with safe and long-lasting LiFePO4 (Lithium Iron Phosphate) cell technology, it delivers an impressive cycle life of 8,000 cycles @ 80% DoD (25°C / 0.75C). Featuring an integrated color touchscreen display and multi-protocol communication (CAN, RS485, RS232), it connects seamlessly with leading inverter brands including Solis, Growatt, Sofar, SAJ, ATESS, MUST, GoodWe, SMA, Deye, Megarevo, SRNE, Victron Energy, Luxpower, and Voltronic Power.

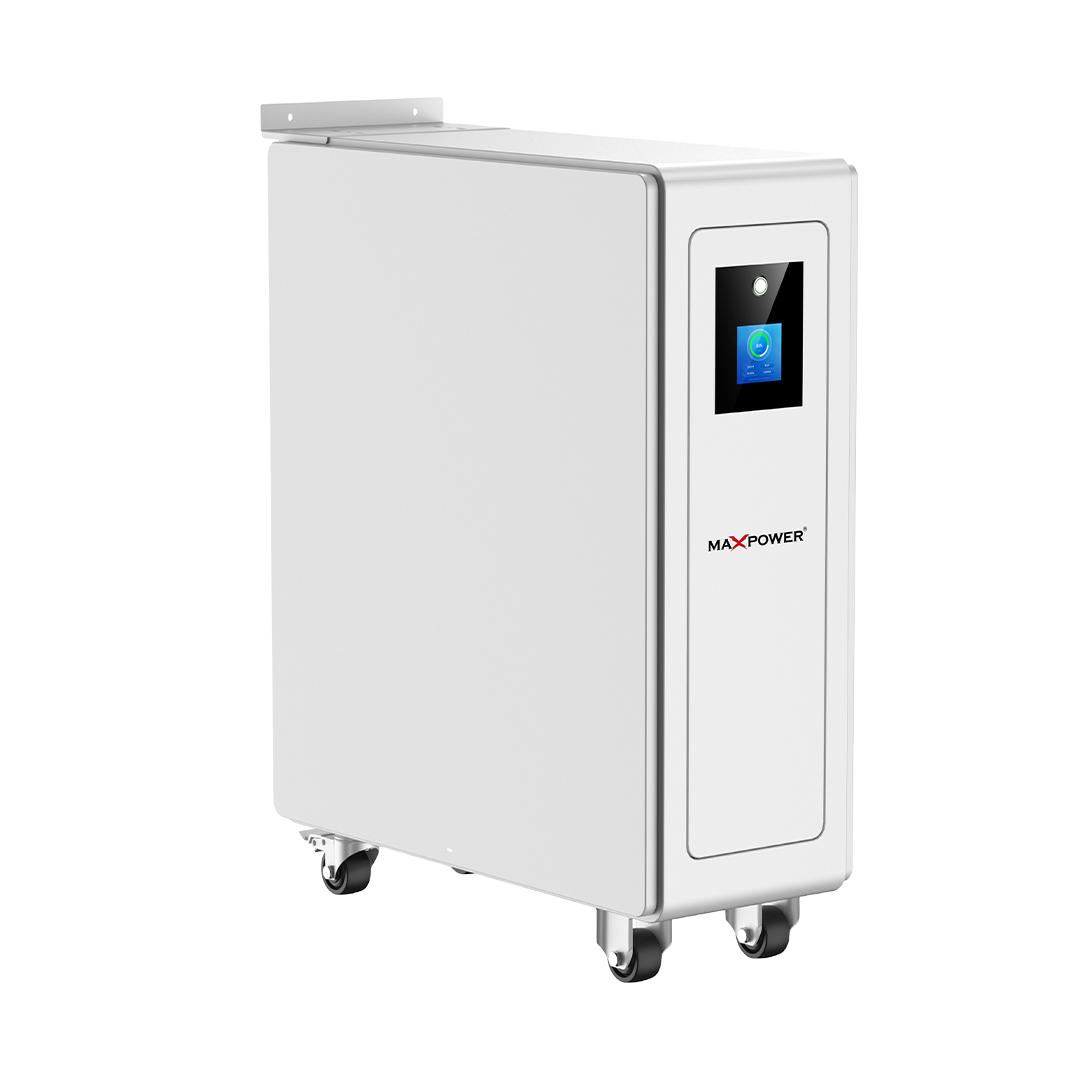

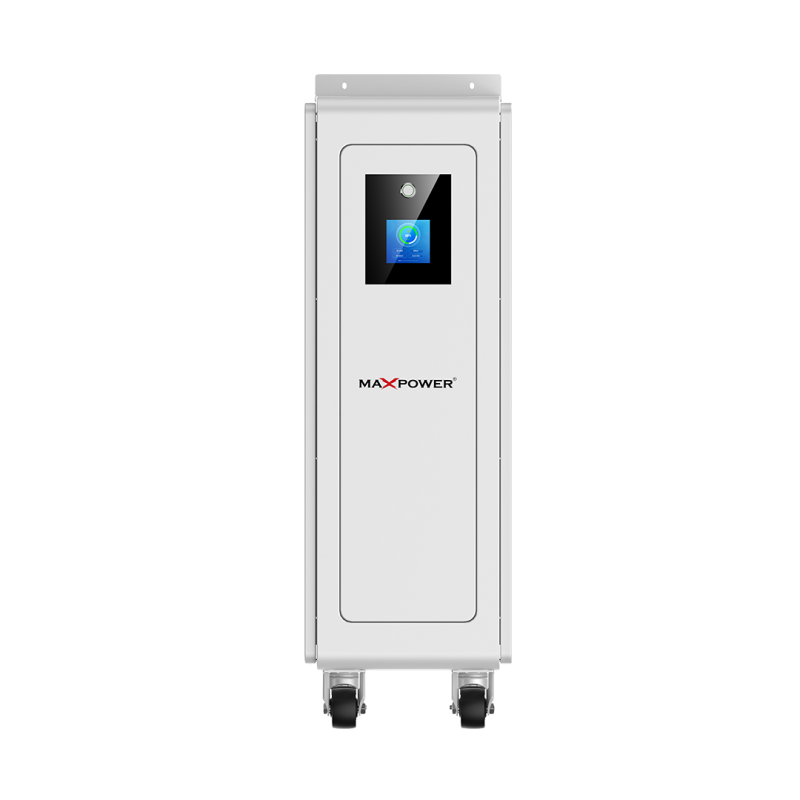

Designed for floor-stand installation with a compact profile (780 x 470 x 235 mm, 120 kg) and IP21 rating, the MP 16000-ULTRA delivers up to 10.24 kW of continuous discharge power (200A discharge current) and 7.68 kW of charge power (150A charge current). For high-demand commercial energy expansion, it supports scalable parallel array configurations of up to 63 batteries in parallel. For larger capacity requirements, explore our MP 32000-ULTRA Lithium Battery or check our full range of lithium batteries. For customized battery sizing and system integration, contact our technical engineering team.

Frequently Asked Questions

What is the total storage capacity and nominal voltage of the MP 16000-ULTRA?

The MP 16000-ULTRA provides 16 kWh total energy capacity operating at a 51.2V DC nominal voltage with a 314Ah rating.

How many MP 16000-ULTRA units can be connected in parallel?

The battery system supports high scalability, allowing up to 63 units connected in parallel to increase overall energy storage output.

What are the continuous charge and discharge current ratings?

It supports a continuous charge current of 150A (7.68 kW charge power) and a maximum continuous discharge current of 200A (10.24 kW discharge power).

Which communication protocols and display options are built into this unit?

The unit features an integrated color touchscreen on the front display and supports CAN, RS485, and RS232 communication interfaces for real-time BMS monitoring and inverter synchronization.

What is the expected cycle life of the MP 16000-ULTRA battery?

Built with grade-A LiFePO4 chemistry, it delivers up to 8,000 cycles at 80% Depth of Discharge (DoD) under 25°C / 0.75C operating conditions.
