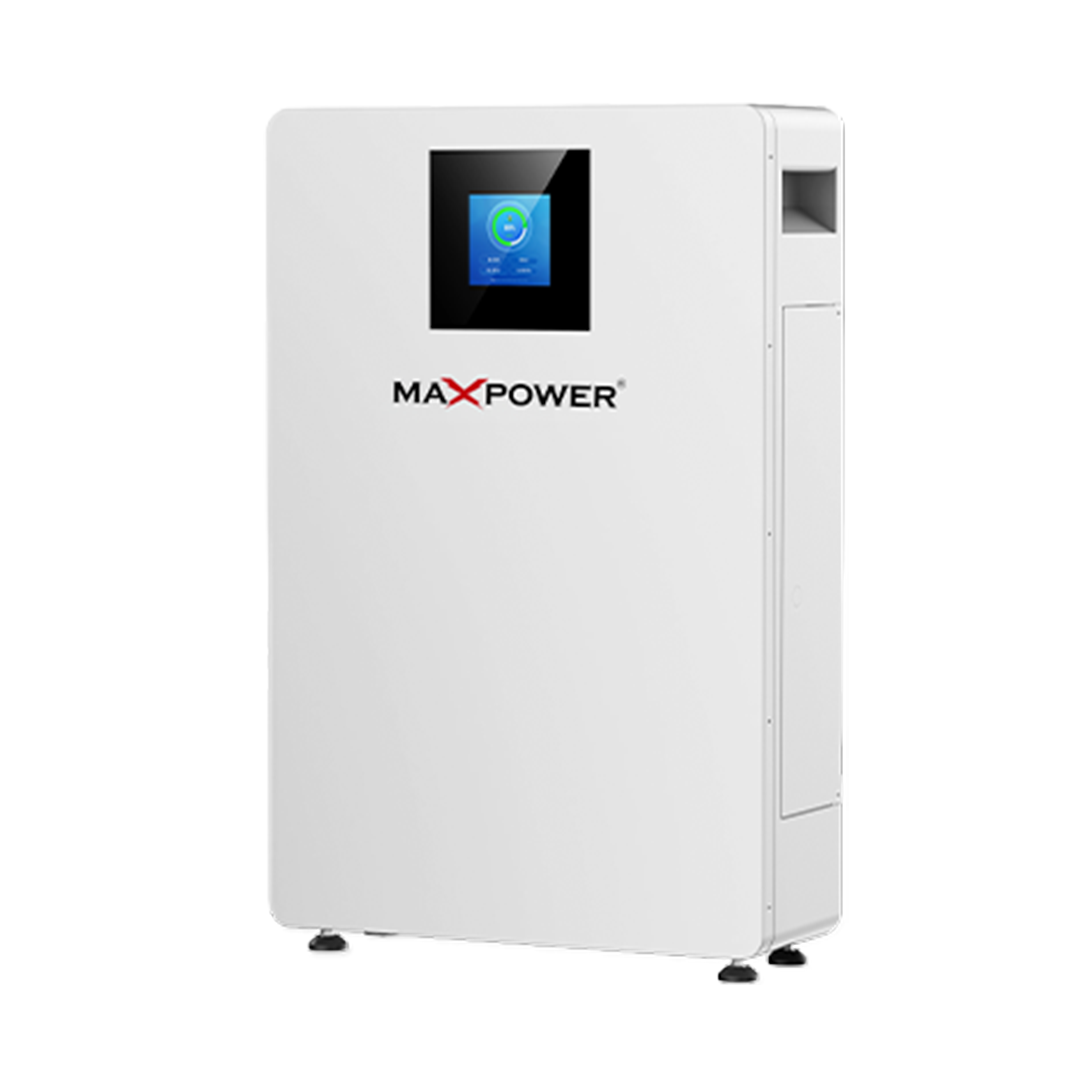

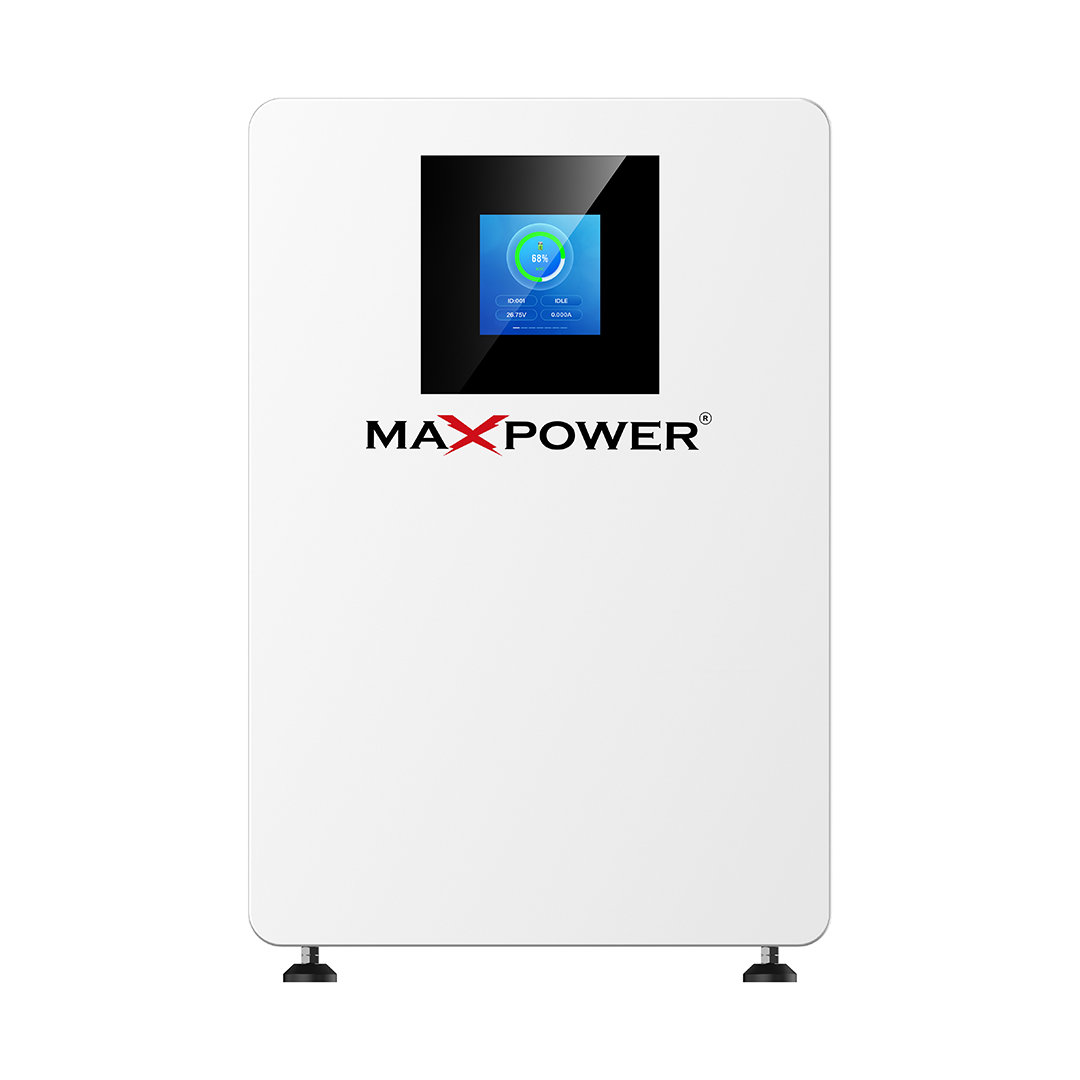

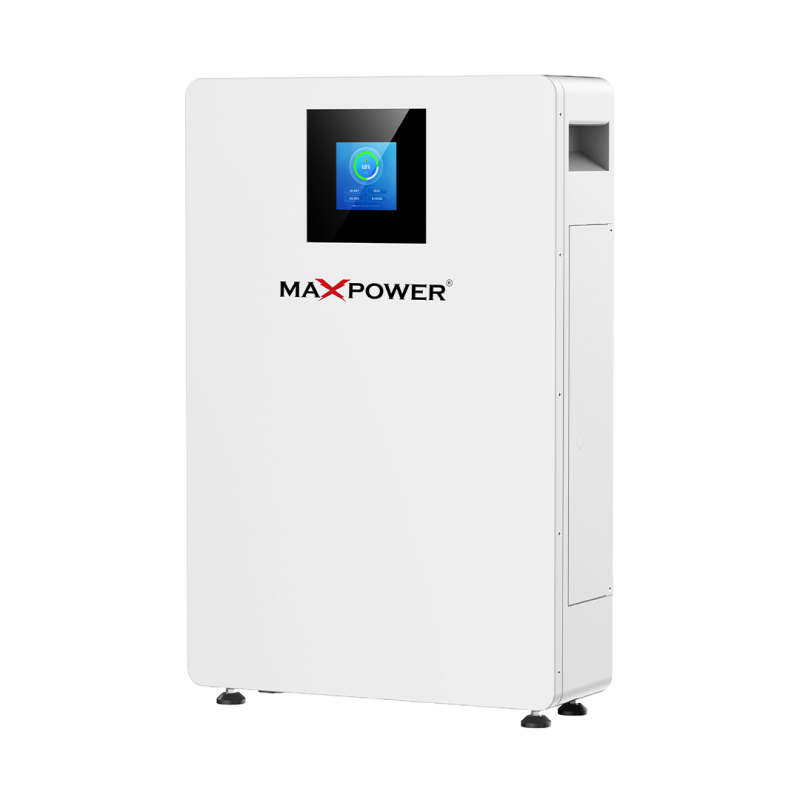

The MP 5000-ULTRA Lithium Battery is a high-performance 51.2V 100Ah (5.12 kWh) energy storage solution available at Maxell Power, specifically engineered to optimize residential solar house systems. Designed to maximize daily solar energy usage alongside your best inverter solar setup, this unit delivers up to 5.12 kW continuous discharge power (100A discharge current) and 2.56 kW charge power (50A charge current) with a 350A short circuit protection capacity.

Built with long-lasting LiFePO4 (Lithium Iron Phosphate) cell chemistry, the battery offers an impressive cycle life of 6,000 cycles @ 80% DoD (25°C / 1C). The system features an integrated interactive color touchscreen display and multi-protocol communication interfaces (CAN, RS485, RS232) for real-time BMS monitoring and seamless inverter synchronization.

Designed for flexible installation in space-conscious setups, the compact unit (630 x 420 x 145 mm, 47.3 kg) supports both floor stand and wall mount configurations with an IP21 enclosure rating. For large-scale energy requirements, the system supports parallel scalability of up to 15 batteries in parallel. Pair this battery with our Bifacial 525W Half Cut Module or contact our engineering team for technical inquiries.

Frequently Asked Questions

What is the nominal capacity and voltage of the MP 5000-ULTRA battery?

The MP 5000-ULTRA features a nominal voltage of 51.2V DC and a capacity of 100Ah, providing 5.12 kWh of total energy storage for modern solar energy systems.

What are the charge and discharge power limits for this model?

It supports a maximum charge current of 50A (2.56 kW charge power) and a continuous discharge current of 100A (5.12 kW discharge power) to pair smoothly with your best inverter solar setup.

How many MP 5000-ULTRA batteries can be connected in parallel?

This battery system supports scalability for up to 15 units connected in parallel to easily expand power capacity for any residential solar house.

What mounting options and cell chemistry does the unit use?

It utilizes safe LiFePO4 (Lithium Iron Phosphate) cell technology and supports flexible floor stand or wall mount installation with included mounting hardware.

What communication interfaces and displays are integrated?

The unit features an interactive color touchscreen on the front panel and supports CAN, RS485, and RS232 communication ports for seamless inverter synchronization.
