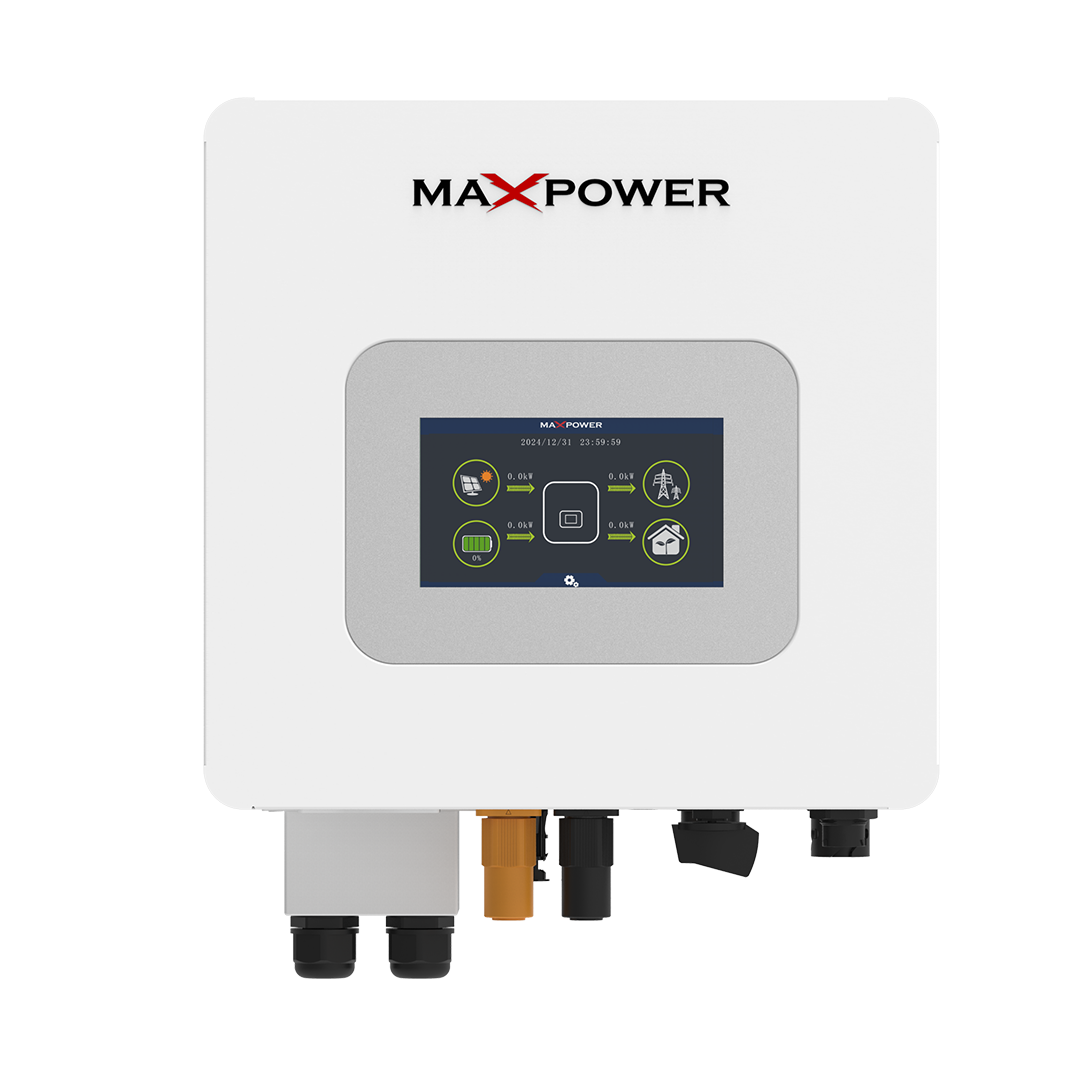

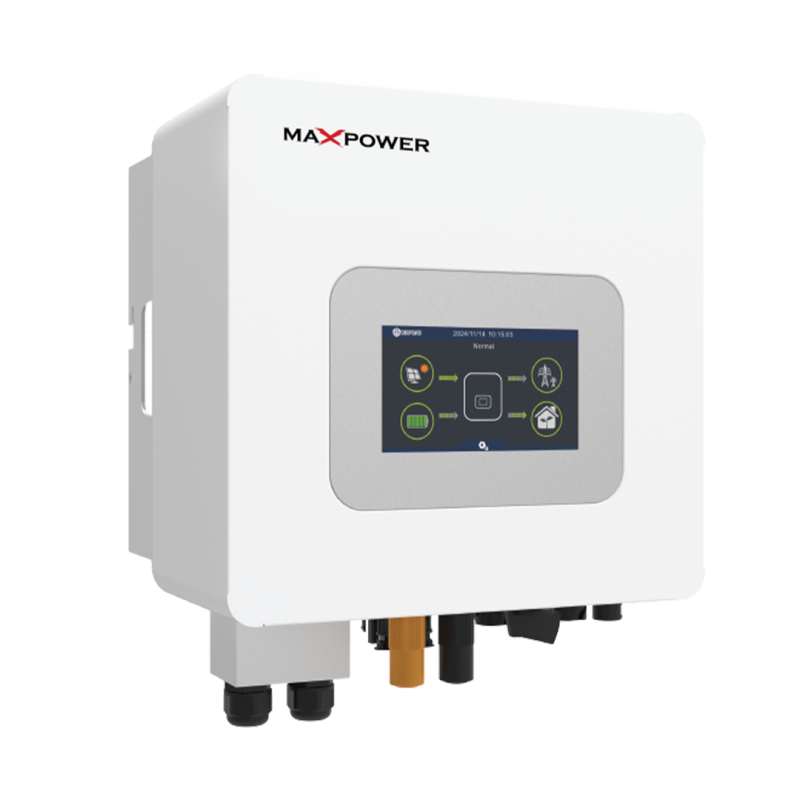

VOLTAS HYD-6K-H6 Single Phase Inverter

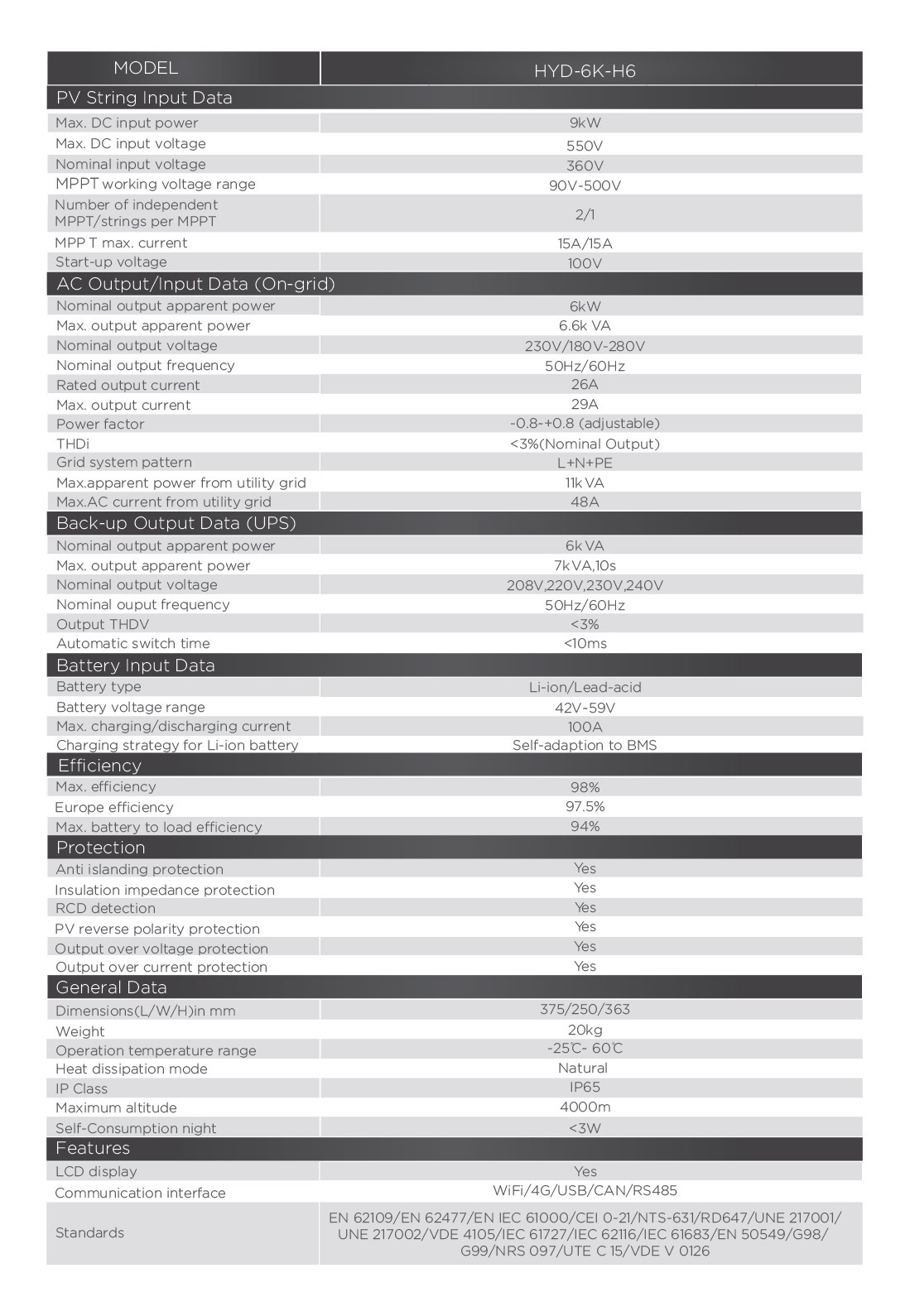

The Voltas HYD-6K-H6 Solar Inverter is a high-performance 6kW power inverter available at Maxell Power, designed to optimize daily solar energy usage for your solar house. It supports up to 9kW DC PV input with 2 independent MPPT trackers (90V–500V range) and delivers up to 98% efficiency with a 6kW on-grid output and 6kVA backup output featuring a fast <10ms switch time.

Compatible with 42V–59V Li-ion and Lead-acid batteries (100A charge/discharge), this IP65 weatherproof inverter (20 kg) includes full electrical protections, natural cooling, an LCD display, and WiFi/4G/CAN/RS485 monitoring. Pair it with our MP 5000-ULTRA Lithium Battery or contact our engineering team for technical inquiries.

Frequently Asked Questions

What is the maximum PV panel capacity supported by the Voltas HYD-6K-H6?

The Voltas HYD-6K-H6 supports up to 9kW maximum DC PV input power across 2 independent MPPT trackers with an MPPT voltage range of 90V–500V.

How fast does the back-up output engage during a power failure?

The unit features an ultra-fast automatic switch time of less than 10 ms (<10ms), providing seamless 6kVA continuous backup power to keep your home or office running uninterrupted.

What battery voltage range and maximum charging currents are supported?

It operates on a 42V–59V battery voltage range supporting both Lithium-ion and Lead-acid batteries with a 100A maximum charging and discharging current limit.

Is the inverter built for outdoor installation and weather resistance?

Yes, it comes with an IP65 protection rating and operates in temperatures ranging from -25°C to 60°C with silent natural heat dissipation.

What communication interfaces are built into the Voltas HYD-6K-H6?

The inverter includes built-in LCD display interface and supports WiFi, 4G, USB, CAN, and RS485 for convenient system status tracking and smart app monitoring.
