VOLTAS HYD-12K-H6 Single Phase Inverter

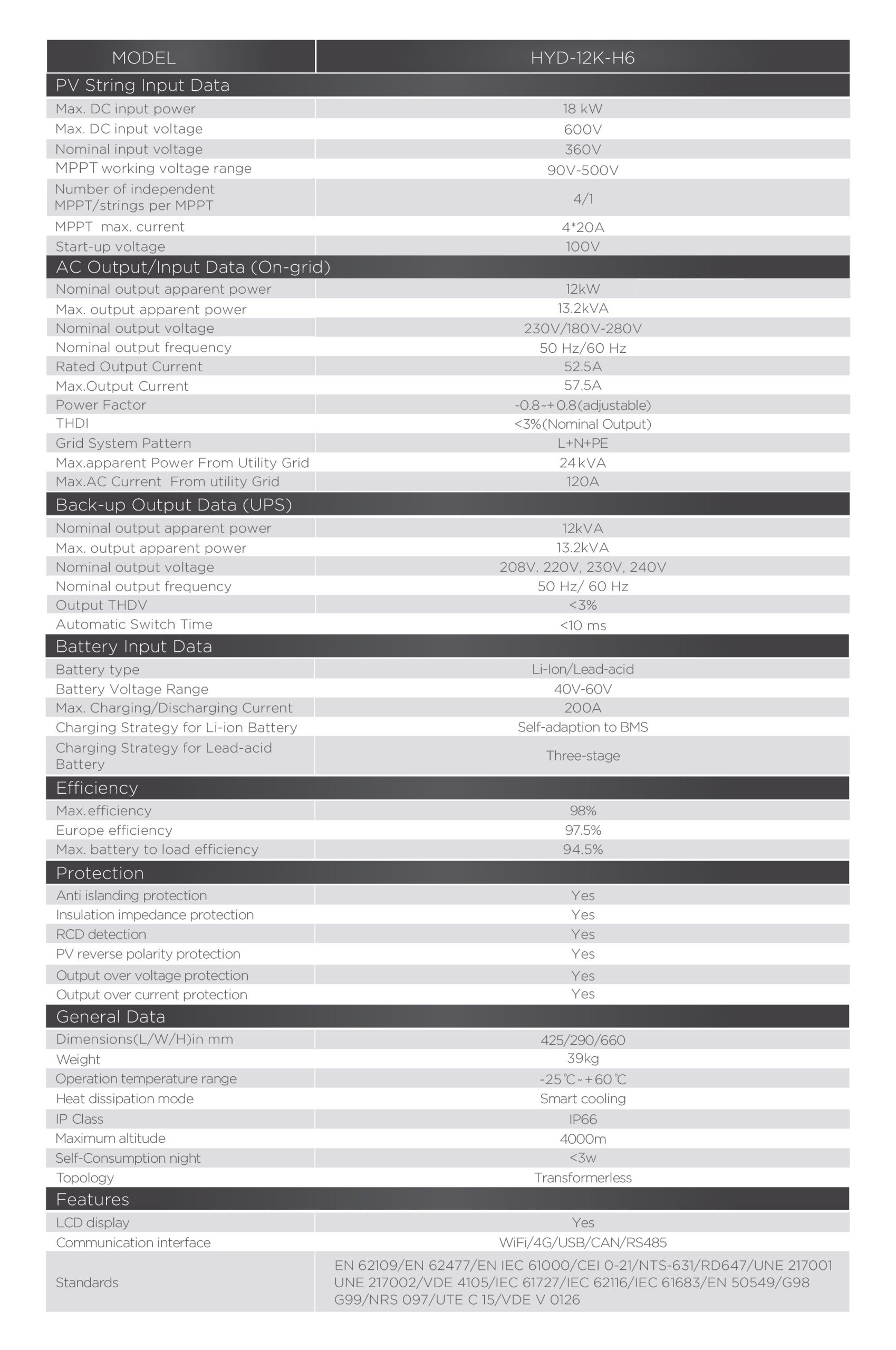

The Voltas HYD-12K-H6 Solar Inverter is a high-capacity 12kW single-phase energy solution available at Maxell Power, engineered to deliver heavy-duty performance for large solar house systems and commercial establishments. Designed to maximize your solar energy yield alongside your best inverter solar setup, it supports up to 18kW of PV array input power with a max DC input voltage of 600V and an MPPT operating range of 90V–500V (360V nominal). Built with 4 independent MPPT trackers (1 string per MPPT) featuring 20A max current per tracker and a low 100V start-up voltage, it extracts peak output even during partial shade conditions.

Engineered with a robust IP66 rating, smart cooling technology, and transformerless topology, the HYD-12K-H6 delivers up to 98% maximum efficiency and 12kW nominal output power (13.2 kVA max apparent power). For continuous backup protection during grid cuts, its UPS mode switches in under 10 ms, delivering 12 kVA continuous power. It supports 48V nominal Li-Ion and Lead-Acid batteries (40V–60V DC range) with up to 200A maximum charge/discharge current, self-adaptation to BMS, and multi-protocol communication (WiFi/4G/USB/CAN/RS485). Pair this inverter with our MP 16000-ULTRA Lithium Battery or contact our engineering team for technical inquiries.

Frequently Asked Questions

What is the maximum PV capacity supported by the Voltas HYD-12K-H6?

The Voltas HYD-12K-H6 supports up to 18kW of PV input power with a maximum DC voltage of 600V across 4 independent MPPT trackers.

How fast is the transfer time during a power interruption?

The inverter features an automatic switch time of less than 10 milliseconds (<10ms), providing continuous, uninterrupted backup power for connected loads.

What battery voltage range and maximum currents are supported?

It operates on a 40V–60V DC battery range supporting both Lithium-ion and Lead-Acid battery chemistry with a maximum charge and discharge current of 200A.

Is the HYD-12K-H6 suitable for outdoor installation?

Yes, it features a heavy-duty IP66 ingress protection rating along with smart cooling, making it suitable for both outdoor and indoor environments.

What communication channels are included for system monitoring?

The unit features an LCD display and supports WiFi, 4G, USB, CAN, and RS485 communication interfaces for remote system monitoring.
