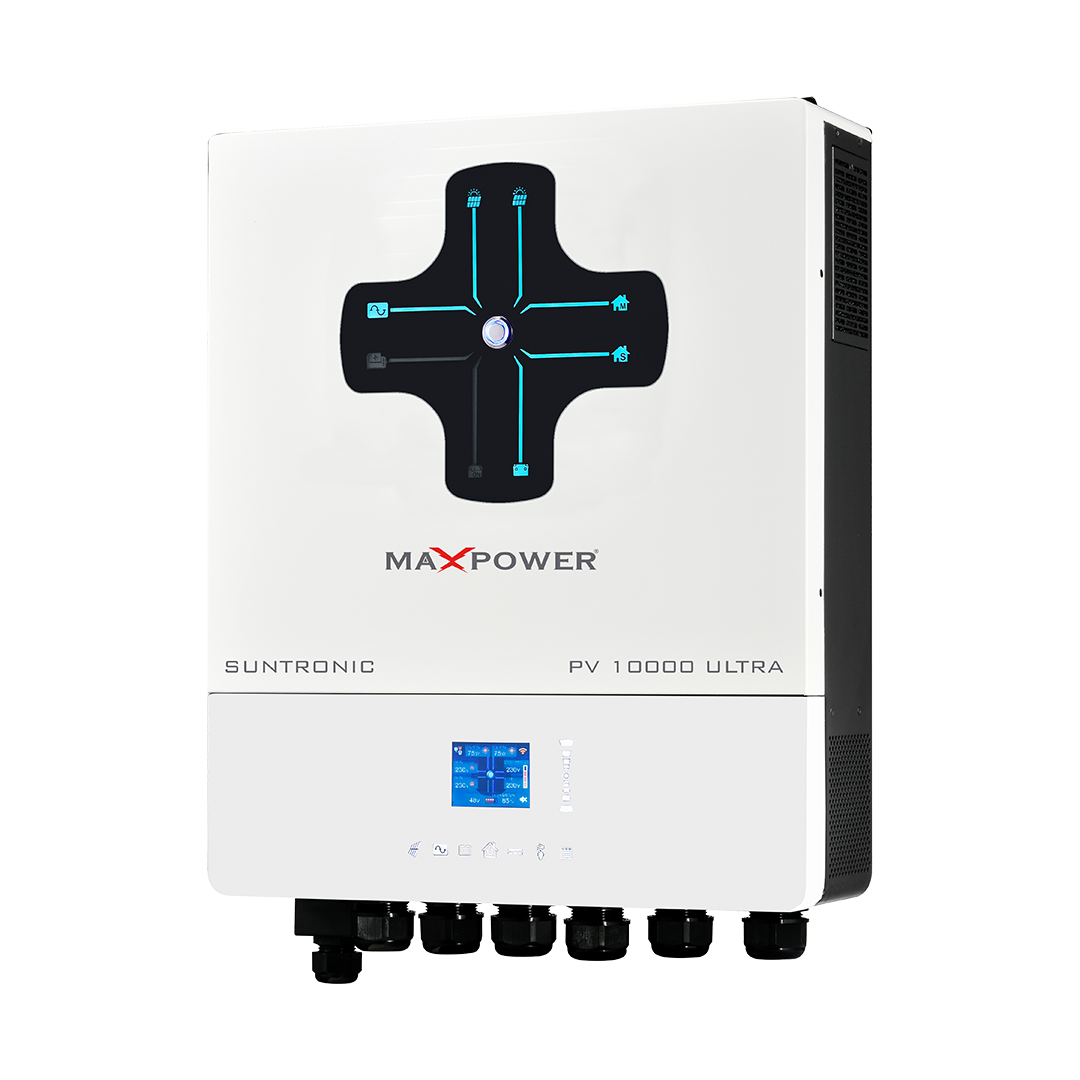

SUNTRONIC PV 10000 ULTRA

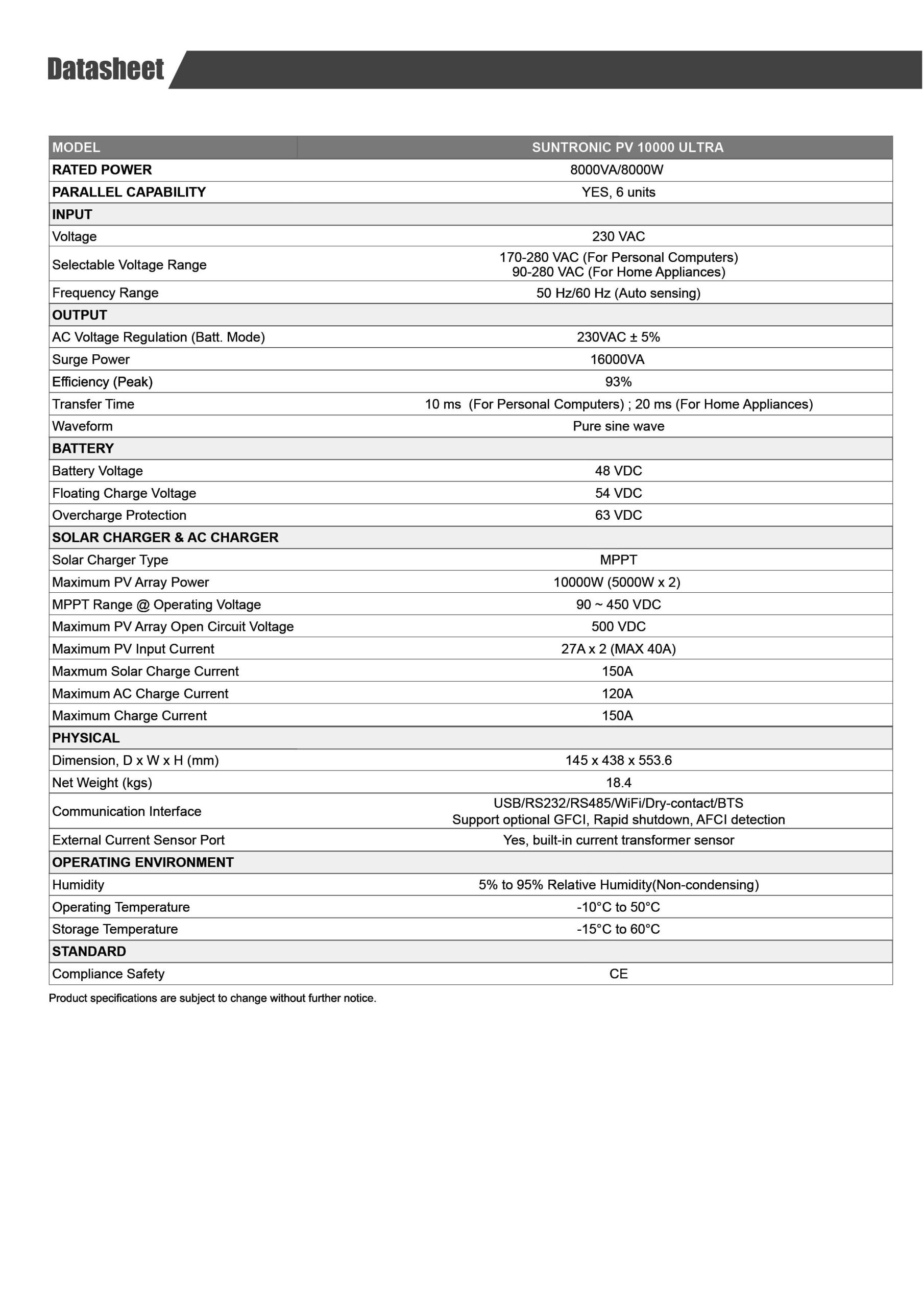

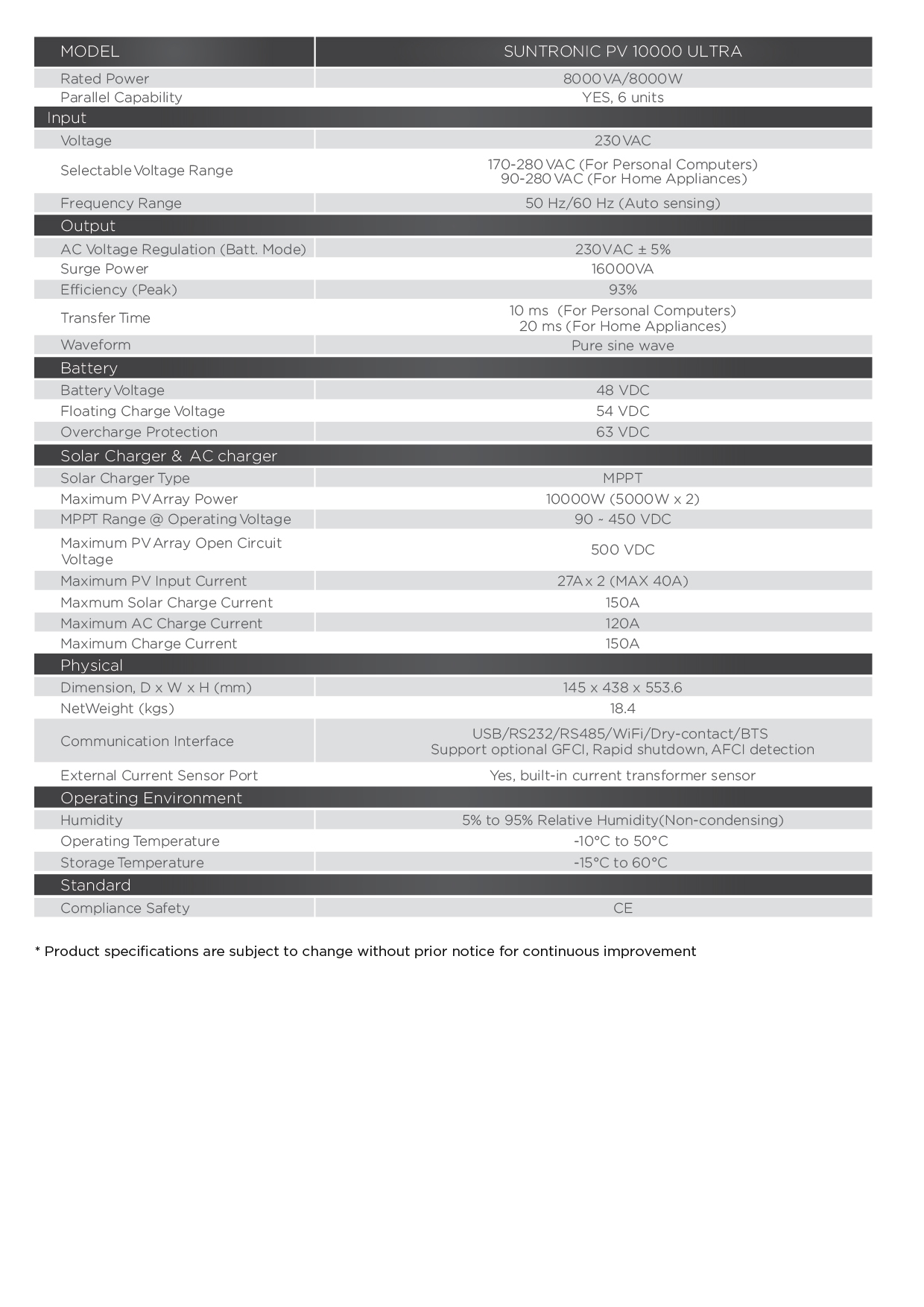

The Suntronic PV 10000 Ultra Solar Inverter is a high-capacity 8000VA / 8000W pure sine wave energy solution available at Maxell Power, engineered to deliver dependable performance for medium-to-large solar house setups and commercial properties. Designed to maximize your solar energy efficiency alongside your best inverter solar setup, it supports up to 10000W maximum PV array input power (5000W x 2 dual input) across an MPPT operating voltage range of 90V–450V DC (500V DC max open-circuit voltage). Built with dual PV inputs (27A x 2, max 40A) and a 16000VA surge power capacity with 93% peak efficiency, it powers heavy electrical loads with complete ease.

Operating on a 48V DC nominal battery architecture (54V DC floating charge, 63V DC overcharge protection), the inverter delivers a high-capacity 150A maximum solar charge current (120A AC charge current / 150A max overall charge current). It guarantees seamless backup during power cuts with rapid transfer times of 10 ms for sensitive personal computers and 20 ms for standard home appliances. Encased in a compact frame (145 x 438 x 553.6 mm, 18.4 kg) with parallel expansion support up to 6 units, it comes equipped with versatile communication ports (USB, RS232, RS485, WiFi, Dry-contact, BTS, external CT sensor port) and support for optional GFCI, AFCI, and Rapid Shutdown protection. Pair this inverter with our MP 10000-ULTRA Lithium Battery or contact our engineering team for technical inquiries.

Frequently Asked Questions

What is the continuous rated power and surge output of the Suntronic PV 10000 Ultra?

The Suntronic PV 10000 Ultra provides a continuous power output of 8000W (8000VA) with a peak surge power capacity of 16000VA to handle heavy inductive motor loads safely.

What maximum PV panel capacity can be connected to this inverter?

It supports up to 10000W (10kW) total PV array input power using dual MPPT inputs (5000W x 2) with an MPPT voltage range of 90V to 450V DC (500V DC max VOC).

Can multiple Suntronic PV 10000 Ultra units be configured in parallel?

Yes, the inverter features built-in parallel capability allowing up to 6 units to be connected in parallel for total system power expansion.

What battery nominal voltage and charging currents are supported?

The unit operates on a 48V DC nominal battery system and provides up to 150A maximum solar charge current and 120A AC charge current.

What safety features and communication interfaces are integrated into this model?

It includes USB, RS232, RS485, WiFi, Dry-contact, BTS, and built-in current transformer sensor ports, alongside optional support for GFCI, Rapid Shutdown, and AFCI safety detection.
